Product Detailed Parameters

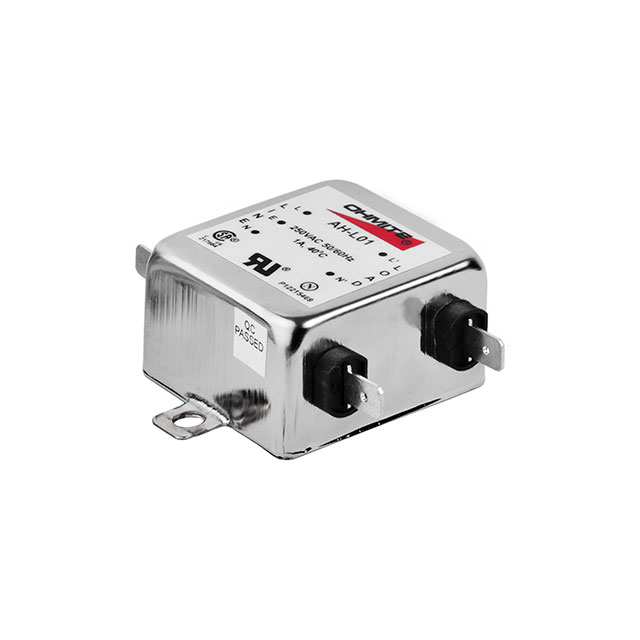

- Description：LINE FILTER 110V/250VAC 1A CHASS
- Series：AHL
- Mfr：Ohmite
- Package：Box
- Filter Type：Single Phase
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：110V, 250V
- Current：1:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：cCSAus, CE, UR
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview
The Ohmite AH-L01 is a single-phase EMC/EMI power line filter module designed for AC mains applications. It features a dual-stage filtering architecture to attenuate electromagnetic interference across the power line. The component supports a current rating of 1 A and operates at voltage ratings of 110 VAC and 250 VAC within 50/60 Hz frequency ranges. Termination is provided via quick connect tabs measuring 6.3 mm x 0.8 mm. The unit weighs 0.125 kg and exhibits a leakage current of 0.340 mA at 250 VAC 50 Hz.
Feature Summary
- Dual-stage EMI/EMC filtering topology
- Quick connect termination interface
- Compliance with RoHS standards
Applications
- Single-phase AC power line noise suppression
- Industrial equipment EMI mitigation
- Consumer electronics power input filtering
Procurement Notes
Verify the specific datasheet version and manufacturer documentation prior to procurement, as availability status may vary by region. Confirm that the quick connect tab dimensions (6.3 mm x 0.8 mm) match the target PCB or harness requirements. Ensure the operating environment remains within the specified 110 VAC/250 VAC limits and 50/60 Hz frequency range to maintain performance integrity.
Selection Notes
Select this component when a compact, single-phase solution is required for low-current (1 A) applications. The dual-stage design offers enhanced attenuation compared to single-stage alternatives. Verify that the physical footprint and quick connect terminals are compatible with the assembly process. Consider the weight and thermal characteristics if multiple units are installed in confined spaces.
Part Context
The AH-L01 belongs to Ohmite's AH Series of EMI filters, which are engineered for power line conditioning. This series provides standardized solutions for electromagnetic compatibility in various electronic systems. The component adheres to ISO 9001:2015, AS9100D, and IATF 16949 quality certifications, indicating suitability for regulated industries requiring consistent manufacturing standards.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult Ohmite directly for cross-reference recommendations or equivalent products within the AH Series or other Ohmite filter lines.
