AH-L16

Power Line Filter Modules Overview

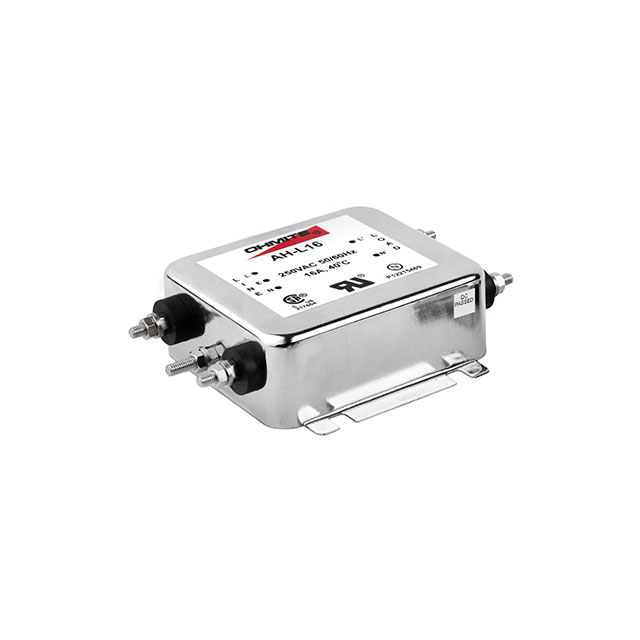

The Ohmite AH-L16 is a chassis-mount power line filter module designed for AC mains applications. It operates at frequencies of 50 Hz and 60 Hz with a maximum operating temperature of +85°C. The unit features tab connectors for termination and is certified by UL, CSA, and IEC/EN standards. Key electrical specifications include a leakage current of 340 uA and voltage ratings of 110VAC and 250VAC.

Power Line Filter Modules Feature Summary

• Non-inductive ceramic composite construction for high energy handling
• Chassis mounting style with tab connector termination
• Compliance with UL, CSA, and IEC/EN safety standards

Power Line Filter Modules Applications

• Power line filtering in electronic equipment
• AC mains input protection modules
• Industrial control systems requiring EMI suppression

Power Line Filter Modules Procurement Notes

Verify the specific datasheet version for the AH-L16 to confirm exact voltage and current ratings, as distributor listings may vary. Ensure compatibility with chassis mounting requirements and tab connector dimensions. Check for updated compliance certifications such as UL, CSA, or IEC/EN before integration into final designs.

Power Line Filter Modules Selection Notes

Select this component when chassis-mounted EMI filtering is required for AC power lines. Consider the 1A rating and 340 uA leakage current against system requirements. Verify that the 110/250VAC rating matches the target network voltage. Ensure thermal management supports the +85°C maximum operating temperature limit.

Power Line Filter Modules Part Context

The AH-L16 belongs to the AH-L series of power line filters manufactured by Ohmite. These components are engineered for robust performance in environments where electromagnetic interference must be suppressed at the power entry point. The series utilizes ceramic composite materials to handle high energy surges while maintaining non-inductive characteristics.

Power Line Filter Modules Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
