AH083F245001-T

$4.72

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:bf311550f48e Category: RF Antennas Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

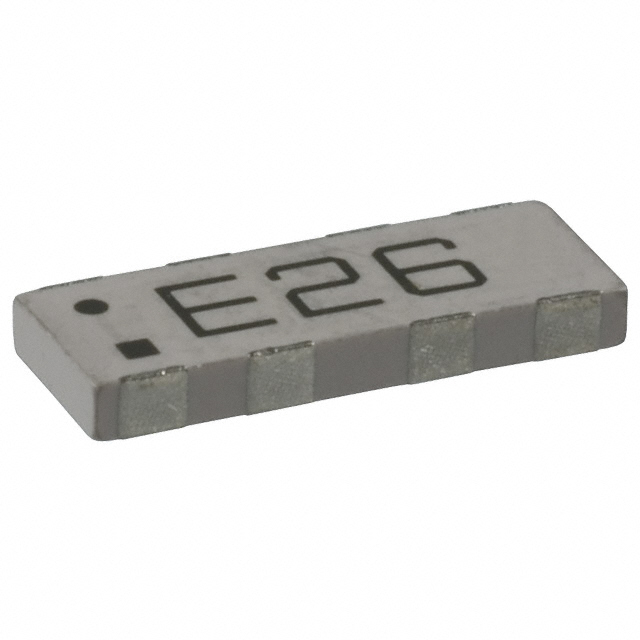

AH083F245001-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is RF ANT 2.4GHZ CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AH083F245001-T

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Chip
Number of Bands：1
VSWR：3
Return Loss：-
Gain：1.8dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.039" (1.00mm)
Applications：Bluetooth, WiMax™, WLAN, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for AH083F245001-T

AH083F245001-T

Antennas RF Overview

The AH083F245001-T is a single-band chip antenna manufactured by Taiyo Yuden, designed for the 2.4GHz frequency band. It supports applications including Bluetooth, WiMax, WLAN, and Zigbee. The component features a surface mount solder termination and an inverted F structure. Its maximum height is 0.039 inches (1.00mm). The antenna operates within the 2400 to 2500 MHz frequency band width.

Antennas RF Feature Summary

Compact package size with low profile design
High performance with wide bandwidth
Low interference characteristics for modern designs
Stable temperature performance

Antennas RF Applications

Bluetooth devices
WiMax systems
Wireless LAN (WLAN)
Zigbee networks

Antennas RF Procurement Notes

Verify the specific datasheet version before integration, as product status updates may occur. Confirm that the ordering suffix matches the required packaging type. Ensure compatibility with the target PCB layout for the 2.4GHz band. Check RoHS compliance status against current regulatory requirements for the destination market.

Antennas RF Selection Notes

Select this component for designs requiring a compact, low-profile antenna solution in the 2.4GHz ISM band. It is suitable for space-constrained portable electronics. Consider its stable temperature characteristics for environments with thermal variations. Evaluate the inverted F structure against system impedance matching requirements.

Antennas RF Part Context

This part belongs to Taiyo Yuden's high-frequency product line, which focuses on compact packages with high performance. It is categorized under RF antennas, specifically chip types. The series targets latest wireless communication standards, offering reliable signal transmission for short-range connectivity protocols.
