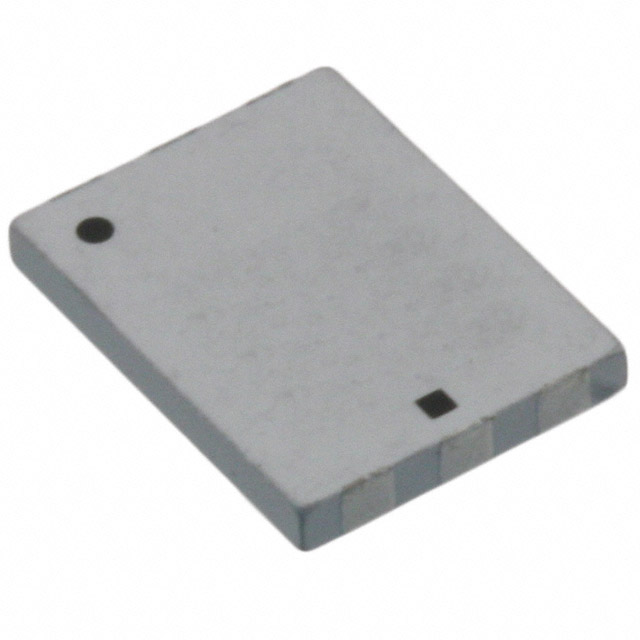

AH086M555003-T

$5.46

Description：RF ANT 3.5GHZ/5.6GHZ CHIP SLD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:59a64b21eaf2 Category: RF Antennas Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AH086M555003-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is RF ANT 3.5GHZ/5.6GHZ CHIP SLD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AH086M555003-T

Description：RF ANT 3.5GHZ/5.6GHZ CHIP SLD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：WiFi
Frequency Group：UHF (3GHz ~ 4GHz), SHF (f > 4GHz)
Frequency (Center/Band)：3.5GHz, 5.6GHz
Frequency Range：3.1GHz ~ 8GHz
Antenna Type：Chip
Number of Bands：1
VSWR：2.5
Return Loss：-
Gain：2.6dBi, 0.7dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.039" (1.00mm)
Applications：WiMax™
Power - Max：-

Antennas RF datasheet and documents for AH086M555003-T

AH086M555003-T

Antennas RF Overview

The AH086M555003-T is a multilayer chip antenna manufactured by Taiyo Yuden, designed for surface-mount applications. It operates within a frequency range of 3.1GHz to 8GHz, supporting WiMAX and WLAN protocols. The component features a peak gain of 2.6dBi at 3.5GHz and 0.7dBi at 5.6GHz, with a typical VSWR of 2.5 and an impedance of 50 ohms. It utilizes a monopole design and reflow soldering termination.

Antennas RF Feature Summary

Multilayer chip antenna structure suitable for surface-mount technology
Monopole design optimized for WiMAX and WLAN protocol support
Reflow soldering termination for reliable PCB integration

Antennas RF Applications

WiMAX wireless communication devices
WLAN network equipment
UWB (Ultra-Wideband) systems

Antennas RF Procurement Notes

Verify the specific ordering suffix and package variant against the official datasheet before procurement. Confirm RoHS compliance status and moisture sensitivity level requirements for your manufacturing process. Ensure the selected supplier provides valid traceability documentation matching the manufacturer's part number specifications.

Antennas RF Selection Notes

Select this component when designing for WiMAX or WLAN applications requiring a compact, low-profile antenna solution. Consider the 3.1GHz to 8GHz operational bandwidth and the specific gain characteristics at 3.5GHz and 5.6GHz. Evaluate the 50-ohm impedance match and VSWR performance relative to your RF circuit requirements.

Antennas RF Part Context

This part belongs to Taiyo Yuden's portfolio of RF antennas, specifically categorized as chip antennas. It is engineered for high-frequency wireless communications, providing a compact alternative to larger external antennas while maintaining necessary signal integrity for modern wireless standards.
