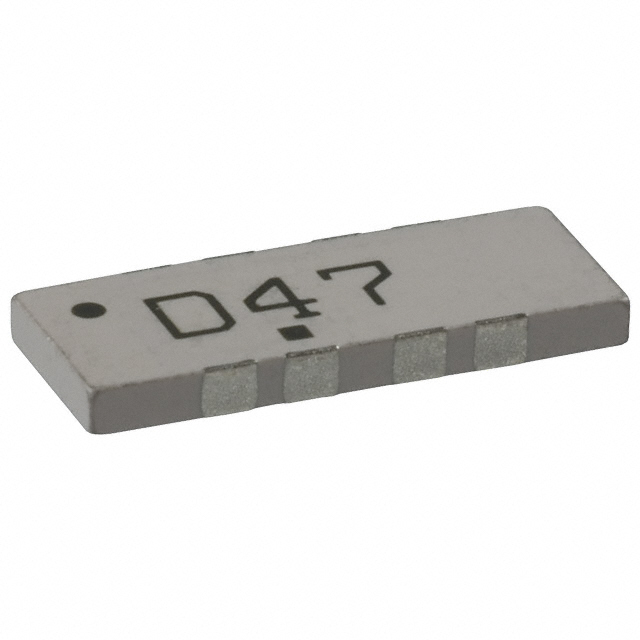

AH104F2450S1-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is RF ANT 2.4GHZ CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AH104F2450S1-T
- Description：RF ANT 2.4GHZ CHIP SOLDER SMD
- Series：-
- Mfr：Taiyo Yuden
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：802.15.4, Bluetooth, WiFi
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：3
- Return Loss：-
- Gain：1.7dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.039" (1.00mm)
- Applications：Bluetooth, WLAN, Zigbee™
- Power - Max：-
Antennas RF datasheet and documents for AH104F2450S1-T
Antennas RF Overview
The AH104F2450S1-T is a multilayer chip antenna designed for 2.45GHz ISM band applications, including Bluetooth, WLAN, and Zigbee. It features an 8-pin surface mount package with solder termination. The component provides a gain of 1.7dBi at 2500MHz. It is RoHS compliant and packaged in embossed tape reels.
Antennas RF Feature Summary
- Multilayer chip antenna construction for compact integration
- Surface mount design with solder termination
- Optimized performance for 2.45GHz ISM band operations
Antennas RF Applications
- Bluetooth devices
- WLAN modules
- Zigbee networks
Antennas RF Procurement Notes
Verify the specific suffix 'S1' against official Taiyo Yuden documentation to ensure correct frequency tuning and impedance matching. Confirm that the 8-pin SMD package dimensions align with the target PCB layout. Check for RoHS compliance status if required by project specifications. Ensure the embossed tape packaging quantity matches production needs.
Antennas RF Selection Notes
Select this component for designs requiring a low-profile antenna solution in the 2.45GHz range. Consider the 1.7dBi gain specification when evaluating link budget requirements. Verify ground plane clearance and mounting orientation as specified in the datasheet to maintain optimal radiation patterns. Ensure compatibility with standard surface mount reflow processes.
Antennas RF Part Context
This part belongs to the AH104F series of chip antennas from Taiyo Yuden. The series offers various frequency variants tailored for different wireless standards. The AH104F2450S1-T specifically targets the 2.45GHz ISM band, distinguishing it from other models like the AH104F2650S1-T which operates at higher frequencies.
Antennas RF Replacement Considerations
Direct substitutes within the same family include the AH104F2650S1-T for 2.6GHz applications or the AH104N2450S1-T if a different package variant is acceptable. Cross-model replacement requires verification of pinout compatibility and electrical parameter alignment.
