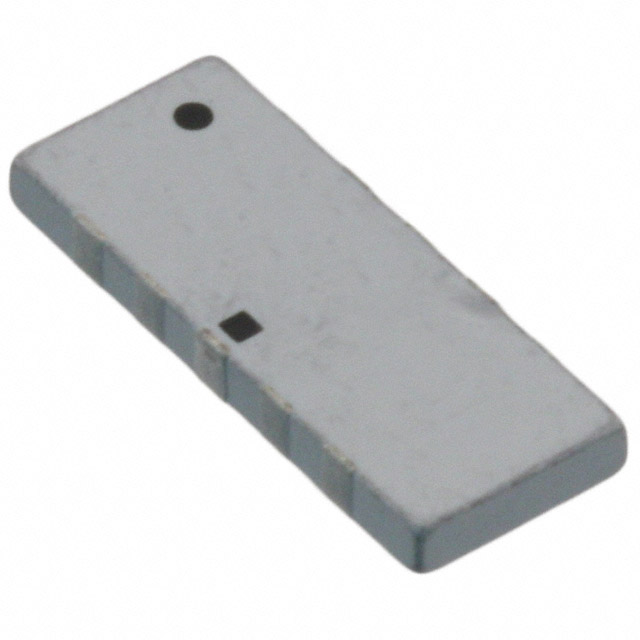

AH104N2450D1-T

$5.09

Description：RF ANT 2.4GHZ/5.4GHZ CHIP SLD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9767ba789414 Category: RF Antennas Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AH104N2450D1-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is RF ANT 2.4GHZ/5.4GHZ CHIP SLD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AH104N2450D1-T

Description：RF ANT 2.4GHZ/5.4GHZ CHIP SLD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.4GHz, 5.4GHz
Frequency Range：2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.85GHz
Antenna Type：Chip
Number of Bands：2
VSWR：3
Return Loss：-
Gain：2.1dBi, 2.4dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.039" (1.00mm)
Applications：WLAN
Power - Max：-

Antennas RF datasheet and documents for AH104N2450D1-T

AH104N2450D1-T

Antennas RF Overview

The AH104N2450D1-T is a dual-band chip RF antenna manufactured by Taiyo Yuden, designed for surface mount integration. It operates across two distinct frequency ranges: 2.4GHz to 2.5GHz and 4.9GHz to 5.85GHz, supporting WLAN applications. The component provides gains of 2.1dBi in the lower band and 2.4dBi in the upper band. Key electrical specifications include a Voltage Standing Wave Ratio (VSWR) of 3. The physical dimensions feature a maximum height of 0.039 inches (1.00mm). It utilizes solder termination and complies with RoHS3 standards.

Antennas RF Feature Summary

Dual-band operation supporting both 2.4GHz and 5.4GHz wireless local area network frequencies
Surface mount chip design optimized for compact embedded installations
Solder termination method ensuring direct board integration

Antennas RF Applications

WLAN modules requiring dual-band connectivity
Embedded wireless communication devices
IoT hardware utilizing 2.4GHz and 5GHz bands

Antennas RF Procurement Notes

Verify the specific suffix 'T' indicates tape and reel packaging configuration when sourcing. Confirm RoHS3 compliance status against current manufacturer declarations. Ensure the ordering part number matches the exact electrical characteristics required for the target frequency bands. Cross-reference datasheet revisions to confirm no recent NRND or obsolescence notices affect availability.

Antennas RF Selection Notes

Select this component for designs requiring integrated dual-band antennas within strict height constraints due to its low profile. Evaluate the VSWR specification against system impedance requirements to ensure efficient signal transmission. Consider the surface mount package type for automated assembly processes. Verify that the gain levels meet the link budget requirements for both operational frequency bands.

Antennas RF Part Context

This component belongs to the Taiyo Yuden AH104 series of multilayer chip antennas. These components are engineered for wireless LAN and Bluetooth module evaluations. The series supports UHF and SHF frequency groups, providing standardized solutions for modern wireless communication protocols requiring compact form factors.
