AH122F245001-T

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR)

SKU:c7968bf509f1 Category: RF Antennas Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AH122F245001-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is RF ANT 2.4GHZ CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AH122F245001-T

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR)
RF Family/Standard：802.15.4, Bluetooth, Navigation, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Chip
Number of Bands：1
VSWR：-
Return Loss：-
Gain：-
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.037" (0.95mm)
Applications：Bluetooth, GPS, UWB, WiMax™, WLAN, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for AH122F245001-T

AH122F245001-T

Antennas RF Overview

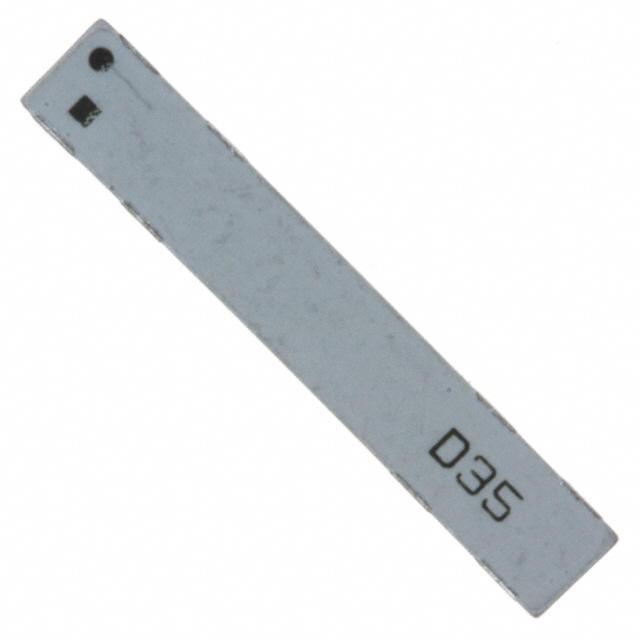

The AH122F245001-T is a surface-mount chip antenna manufactured by Taiyo Yuden, designed for RF applications within the 2.4 GHz to 2.5 GHz frequency range. It features a compact package measuring 12 mm in length, 2 mm in width, and 0.95 mm in height. The component utilizes solder termination for board mounting and supports wireless standards including Bluetooth, GPS, UWB, WiMax, WLAN, and Zigbee.

Antennas RF Feature Summary

Compact surface-mount design suitable for space-constrained devices
Supports multiple wireless communication protocols
Optimized for high-frequency signal transmission

Antennas RF Applications

Bluetooth modules
GPS receivers
Ultra-wideband (UWB) devices
Wireless Local Area Network (WLAN) equipment
Zigbee-enabled sensors

Antennas RF Procurement Notes

Verify component authenticity through authorized distributors due to end-of-life status. Confirm datasheet revisions match specific production batches. Ensure storage conditions comply with moisture sensitivity levels prior to reflow soldering. Validate pin compatibility with target PCB footprint before integration.

Antennas RF Selection Notes

Select this component for designs requiring integrated RF transmission in the 2.4-2.5 GHz band. Consider physical dimensions of 12x2x0.95 mm for layout constraints. Evaluate impedance matching requirements against system specifications. Assess thermal performance during operation to ensure reliability within operating temperature ranges.

Antennas RF Part Context

This model belongs to the AH12 series of chip antennas from Taiyo Yuden. These components are engineered for miniaturized wireless electronics. The series leverages multilayer technology to achieve small form factors while maintaining signal integrity for various industrial and consumer applications.
