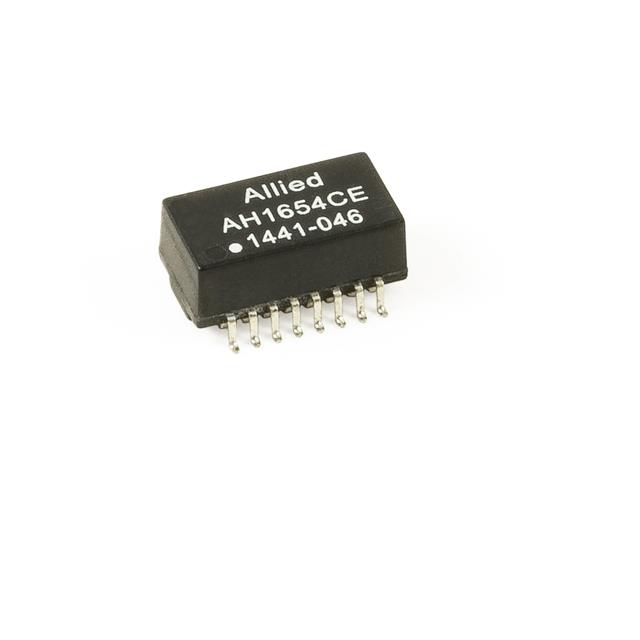

AH1654CE

$0.83

Description：10/100 BASE-T, SINGLE PORT LAN
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:eb874258b21a Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10/100 BASE-T, SINGLE PORT LAN
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:1CT
Mounting Type：Surface Mount
Size / Dimension：0.504" L x 0.268" W (12.80mm x 6.80mm)
Height - Seated (Max)：0.254" (6.45mm)
Operating Temperature：-40°C ~ 110°C
Grade：-
Qualification：-

Download product information

AH1654CE

Overview

The AH1654CE is a surface mount LAN transformer module manufactured by Allied Components International. It supports 10/100 BASE-T single port Ethernet applications. The component features a compact physical footprint measuring 0.504 inches in length and 0.268 inches in width, equivalent to 12.80mm by 6.80mm. This magnetic component is designed for integration into network interface circuits requiring isolation and signal conditioning for standard twisted-pair cabling.

Feature Summary

Supports 10/100 BASE-T single port LAN connectivity
Designed for surface mount technology (SMT) assembly
Provides integrated magnetic isolation for Ethernet signals

Applications

Single port Ethernet network interfaces
10/100 BASE-T data communication systems
Network interface card (NIC) modules

Procurement Notes

Verify the specific datasheet version from Allied Components International to confirm pinout compatibility and electrical specifications. Ensure the surface mount package dimensions align with the PCB layout requirements. Cross-reference the manufacturer part number to distinguish between tape-and-reel or tray packaging options if specified in official documentation.

Selection Notes

Select this component for designs requiring a single-port 10/100 Mbps Ethernet solution. Consider the surface mount form factor for automated assembly processes. Evaluate the physical size constraints against the available board space. Confirm that the magnetic performance meets the specific EMI and signal integrity requirements of the target application.

Part Context

Allied Components International specializes in industry-standard and custom magnetic components and modules. The AH1654CE belongs to their portfolio of LAN transformers designed for network connectivity. These components facilitate reliable data transmission over twisted-pair cables while providing necessary galvanic isolation between the network medium and the electronic circuitry.

Replacement Considerations

Consult official cross-reference lists from Allied Components International for verified substitutes. Ensure any replacement matches the 10/100 BASE-T specification and surface mount package dimensions. Verify pin configuration compatibility before implementation.
