AH212M245001-T

$0.99

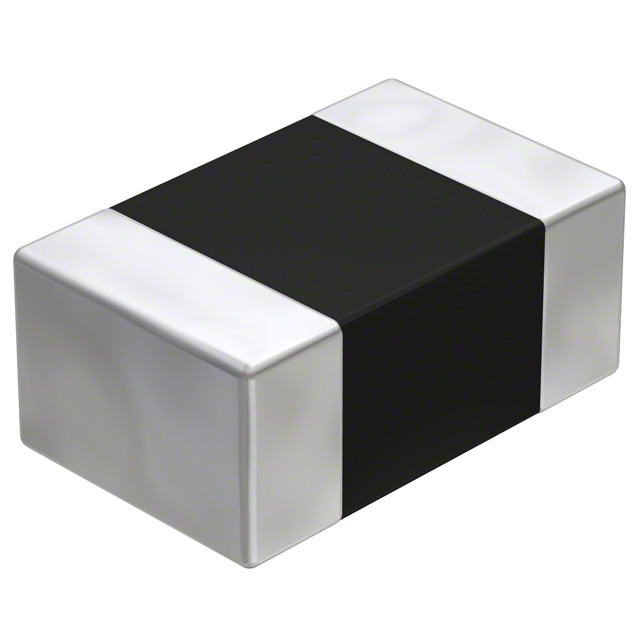

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:8121101c5b1a Category: RF Antennas Brand: Taiyo Yuden

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AH212M245001-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taiyo Yuden. Its product description is RF ANT 2.4GHZ CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AH212M245001-T

Description：RF ANT 2.4GHZ CHIP SOLDER SMD
Series：-
Mfr：Taiyo Yuden
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：802.15.4, Bluetooth, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Chip
Number of Bands：1
VSWR：3
Return Loss：-
Gain：0.9dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.033" (0.85mm)
Applications：Bluetooth, WLAN, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for AH212M245001-T

AH212M245001-T

Antennas RF Overview

The AH212M245001-T is a surface-mount RF chip antenna manufactured by Taiyo Yuden. It operates within the 2.4 GHz to 2.5 GHz frequency range, supporting standard protocols including Bluetooth, WLAN, and Zigbee. The component features a compact low-profile design with dimensions of 0.033 inches (0.85 mm) in maximum height. It utilizes solder termination for board mounting and is optimized for high attenuation and low insertion loss to ensure stable data transmission.

Antennas RF Feature Summary

Supports 2.4 GHz wireless communication standards
Compact low-profile physical structure
Optimized signal transmission characteristics

Antennas RF Applications

Bluetooth devices
WLAN modules
Zigbee networks

Antennas RF Procurement Notes

Verify current availability status as this component may be classified as obsolete or end-of-life. Confirm compatibility with specific PCB layout requirements and impedance matching networks before procurement. Check for official replacement part numbers from the manufacturer if active supply is required.

Antennas RF Selection Notes

Select this component for applications requiring a small form factor antenna operating at 2.4 GHz. Ensure the design accommodates the specified height constraint. Verify that the target application aligns with supported protocols such as Bluetooth, WLAN, or Zigbee for optimal performance.

Antennas RF Part Context

This component belongs to the Taiyo Yuden chip antenna series designed for short-range wireless communications. It serves as a passive radiating element integrated directly onto the circuit board, eliminating the need for external connectors or wires in compact electronic designs.
