Product Detailed Parameters
- Description：LINE FILTER 250VAC 6.5A TH
- Series：FA
- Mfr：KEMET
- Package：Bulk
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：6.5 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Through Hole
- Termination Style：Quick Connect
- Inductance：1mH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

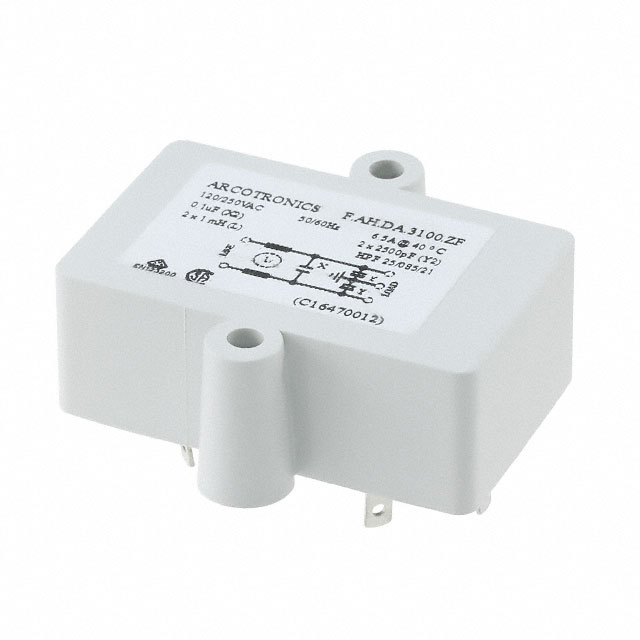

The KEMET AHDA3100ZF000 is a single-phase, single-stage power line filter module designed for through-hole mounting. It features a rated AC voltage of 250V and a current rating of 6.5A, operating at 50/60Hz frequencies. The unit incorporates an inductance of 1mH and utilizes quick-connect terminals for circuit integration. Certified by CSA, UR, and VDE standards, the component supports an operating temperature range from -25°C to 85°C.
Feature Summary
- Single-stage electromagnetic interference suppression architecture
- Through-hole installation with quick-connect terminal interface
- Compliance with international safety certification standards
Applications
- General purpose power line filtering
- Medical equipment power supplies
- Industrial control systems
Procurement Notes
Verify the specific ordering suffix ZF000 against the manufacturer's official datasheet to confirm terminal configuration and mechanical dimensions. Ensure the selected variant matches the required current and voltage ratings for the target application. Cross-reference certification marks such as CSA, UR, and VDE with local regulatory requirements before finalizing procurement decisions.
Selection Notes
Select this component when a single-phase, single-stage filter solution is required for applications demanding 6.5A capacity at 250VAC. Consider the through-hole mounting style and quick-connect terminal type during PCB layout design. Evaluate the thermal performance within the specified -25°C to 85°C operating range to ensure reliability under expected environmental conditions.
Part Context
This part belongs to the KEMET FAH series of power line filter modules. The series offers various current ratings from 0.5A to 10A and includes dedicated medical versions. The AHDA3100ZF000 represents a standard industrial configuration within this broader family of EMI suppression components.
Replacement Considerations
The part number FAHDA3100ZF000 is listed as an alias for AHDA3100ZF000. Verify interchangeability with other single-phase filters offering identical 6.5A ratings and 250VAC specifications if supply constraints exist.
