AHM-06

Overview

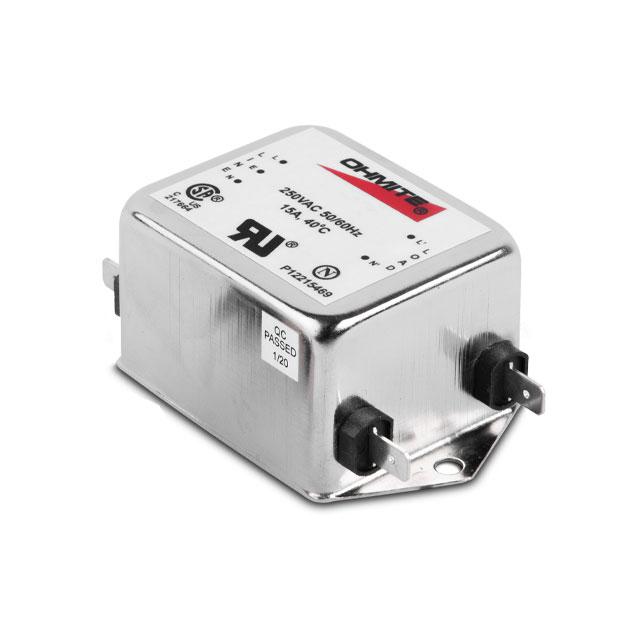

The AHM-06 is a single-phase, dual-stage power line filter module manufactured by Ohmite. It is rated for 250 VAC and supports a maximum current of 6 A at 40°C. The unit operates at 50/60 Hz and utilizes quick connect terminals with dimensions of 6.3 x 0.8 mm. Designed to meet IEC 60601-1 standards, it targets medical applications requiring high performance with minimal leakage currents.

Feature Summary

• Dual-stage filtering architecture for enhanced noise suppression
• Compliance with IEC 60601-1 standard for medical equipment safety
• Low leakage current design suitable for sensitive medical environments

Applications

• Medical devices requiring strict leakage current limits
• Single-phase AC power line filtering
• Equipment adhering to IEC 60601-1 standards

Procurement Notes

Verify component status as the AHM-06 is listed as obsolete and no longer manufactured by Ohmite. Confirm availability through authorized distributors or check for valid substitute part numbers such as TDK B84113C0000B060 before procurement planning. Ensure replacement components meet identical electrical ratings and form factor requirements.

Selection Notes

Select this component only if legacy compatibility is required for existing designs utilizing the AHM series. Evaluate alternative dual-stage filters from other manufacturers if new production is planned. Ensure the replacement maintains the 6A rating, 250VAC input, and quick-connect termination style to fit existing PCB layouts without modification.

Part Context

The AHM-06 belongs to the AHM Series of EMI filters produced by Ohmite Mfg Co. This series is specifically engineered for medical applications, emphasizing high performance and low leakage currents. The manufacturer holds ISO 9001:2015, AS9100D, and ITAF 16949 certifications, indicating adherence to rigorous quality management systems across their product lines.

Replacement Considerations

Public confirmed substitute part number: B84113C0000B060 (TDK). Verify that the substitute matches the 6A current rating, 250VAC voltage, and dual-stage topology. Check terminal dimensions and mounting configuration to ensure mechanical compatibility with the original design.
