AHP24510.07.0100C

Antennas RF Overview

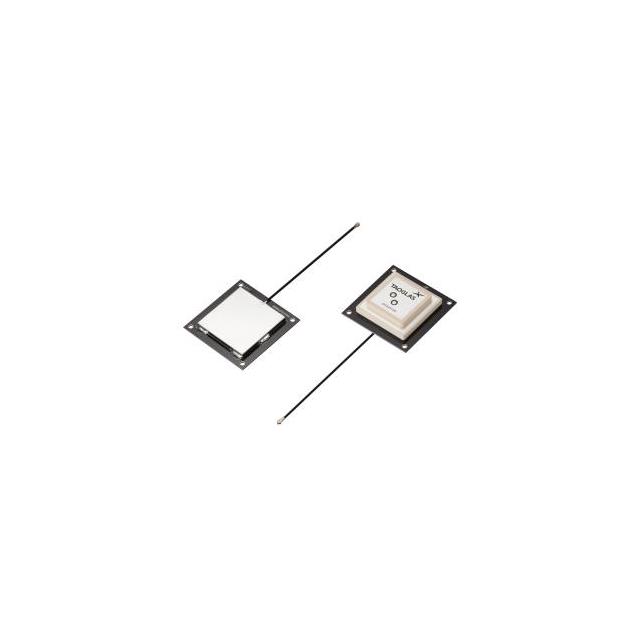

The Taoglas AHP24510.07.0100C is a multi-band active GNSS antenna designed for high-precision positioning applications. It supports L1, L2, and L-Band frequencies, covering ranges from 1.217 GHz to 1.61 GHz. The component features a ceramic patch design with an I-PEX MHFI (U.FL) connector interface and operates within a temperature range of -40°C to +85°C. It provides 50 Ohm impedance and utilizes adhesive mounting with four corner screw holes for secure installation.

Antennas RF Feature Summary

• Multi-band support for GPS, BeiDou, Galileo, GLONASS, and GNSS signals
• High-performance directional ceramic patch design for centimeter-level accuracy
• Integrated active circuitry with low noise amplifier for signal enhancement
• Versatile mounting options including adhesive base and corner screw holes

Antennas RF Applications

• High-precision GPS surveying equipment
• Autonomous vehicle navigation systems
• Agricultural machinery guidance
• Geodetic monitoring stations

Antennas RF Procurement Notes

Verify the specific suffix code to ensure compatibility with required frequency bands and connector types. Confirm that the I-PEX MHFI connector matches the system interface requirements. Check datasheet specifications for gain and noise figure values relevant to the intended application environment. Ensure proper grounding and shielding considerations are addressed during integration.

Antennas RF Selection Notes

Select this model when centimeter-level accuracy is required across multiple GNSS constellations. Consider the active design benefits for weak signal environments. Evaluate the physical dimensions and mounting constraints against the target device enclosure. Compare performance metrics such as axial ratio and front-to-back ratio against alternative passive solutions if power consumption is a critical constraint.

Antennas RF Part Context

This component belongs to the Taoglas Levity Series, a family of multi-band GNSS antennas engineered for high-precision applications. The series includes variants like the AHP54510, offering different form factors while maintaining consistent high-performance characteristics. These antennas are designed to meet the rigorous demands of modern positioning systems requiring robust signal reception across diverse operational conditions.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official Taoglas resources for cross-reference information or equivalent models within the Levity series that match specific electrical and mechanical requirements.
