AHP5354A.07.0100C

Antennas RF Overview

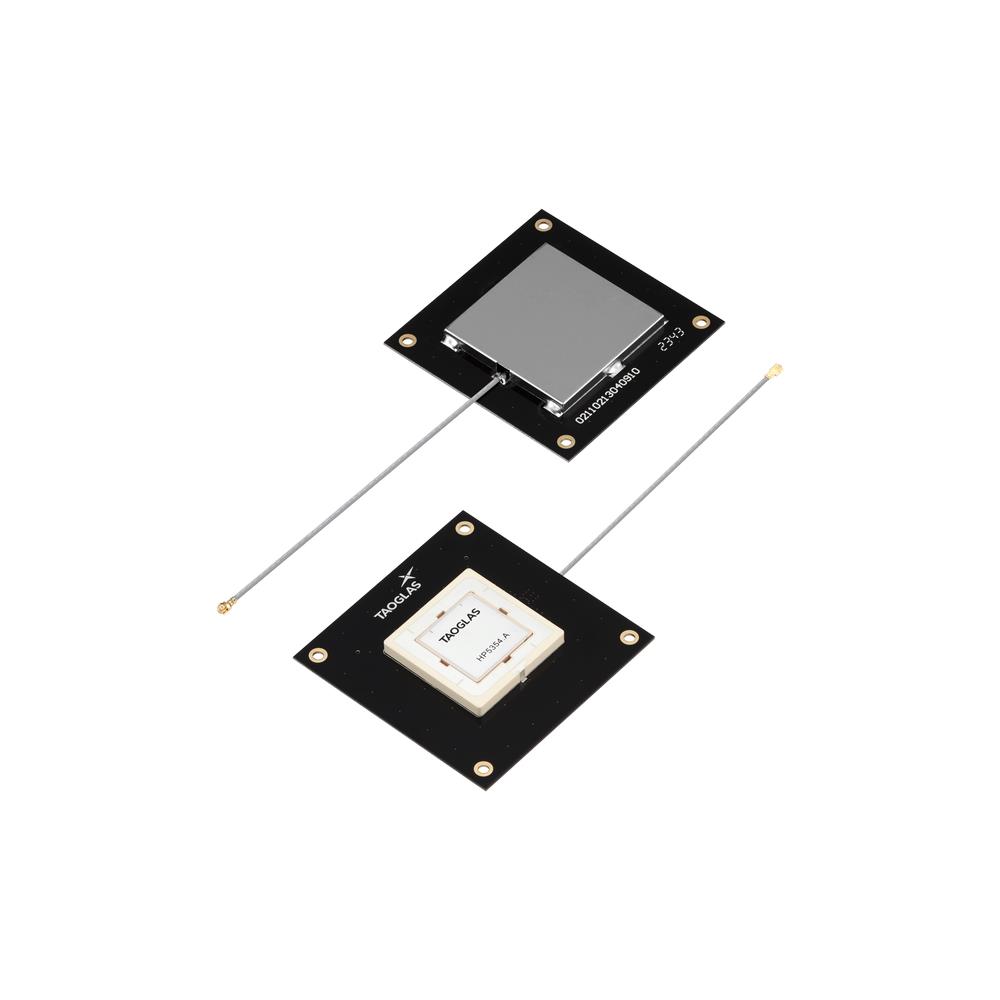

The AHP5354A.07.0100C is an active GNSS patch antenna designed for high-precision positioning applications. It supports multiple satellite constellations including GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS, and IRNSS across L1 and L5 bands. The unit features a dual-stage Low Noise Amplifier (LNA) integrated into the 35x35x4mm housing to enhance signal reception sensitivity. It includes a standard 100mm length of 1.37 micro coaxial cable terminating in an I-PEX MHF-I (U.FL) connector, facilitating direct integration into compact electronic devices requiring robust multi-band navigation capabilities.

Antennas RF Feature Summary

• Supports multi-band GNSS reception including L1 and L5 frequencies for enhanced accuracy
• Integrates a two-stage Low Noise Amplifier to improve signal-to-noise ratio
• Utilizes Right-Hand Circular Polarization for optimal satellite signal capture
• Compact directional patch design suitable for space-constrained embedded systems

Antennas RF Applications

• High-precision automotive navigation and telematics systems
• IoT devices requiring improved location tracking accuracy
• Surveying and mapping equipment needing dual-band support
• Consumer electronics with advanced location-based services

Antennas RF Procurement Notes

Verify that the required connector type matches the I-PEX MHF-I specification provided in the standard configuration. Confirm that the host device PCB layout accommodates the 35x35mm footprint and the 100mm cable routing constraints. Ensure power supply requirements align with the active LNA specifications before integration. Check for any specific mounting hardware needs as the unit is designed for surface mounting.

Antennas RF Selection Notes

Select this model when single-band antennas fail to provide sufficient accuracy due to multipath interference or signal blockage. The inclusion of the L5 band makes it suitable for applications demanding centimeter-level precision or rapid convergence times. Consider the integrated LNA benefits over passive alternatives if the operating environment involves significant signal attenuation or requires long cable runs without external amplification.

Antennas RF Part Context

This component belongs to Taoglas' Inception Series, which focuses on high-performance GNSS solutions. The AHP5354A series represents a dual-band advancement over previous single-band offerings, specifically engineered to replace legacy surface-mount patches. It addresses the growing demand for higher accuracy in IoT and mobile applications by combining L1 and L5 band reception within a standardized form factor.

Antennas RF Replacement Considerations

The HP5354.A series serves as a drop-in replacement for single-band surface mount patches, offering improved positioning accuracy. Verify mechanical compatibility and pinout definitions when substituting older models to ensure seamless integration without redesigning the host PCB layout.
