AHP54510.07.0100C is listed in the Antennas RF range at ChipApex. The manufacturer field lists Taoglas Limited. Its product description is GNSS L1,L5 L-BAND DUAL FEED STAC. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AHP54510.07.0100C
- Description：GNSS L1,L5 L-BAND DUAL FEED STAC
- Series：-
- Mfr：Taoglas Limited
- Package：Bag
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.176GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.601GHz
- Frequency Range：1.166GHz ~ 1.186GHz, 1.525GHz ~ 1.559GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.593GHz ~ 1.61GHz
- Antenna Type：Ceramic Patch
- Number of Bands：5
- VSWR：-
- Return Loss：-
- Gain：4.82dBi, 4.94dBi, 5.06dBi, 5.08dBi, 4.15dBi
- Features：Cable - 100mm, LNA, Filter
- Termination：I-PEX MHFI (U.FL)
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：0.595" (15.11mm)
- Applications：BeiDou, Galileo, GLONASS, GNSS, GPS
- Power - Max：-
Antennas RF datasheet and documents for AHP54510.07.0100C
Antennas RF Overview

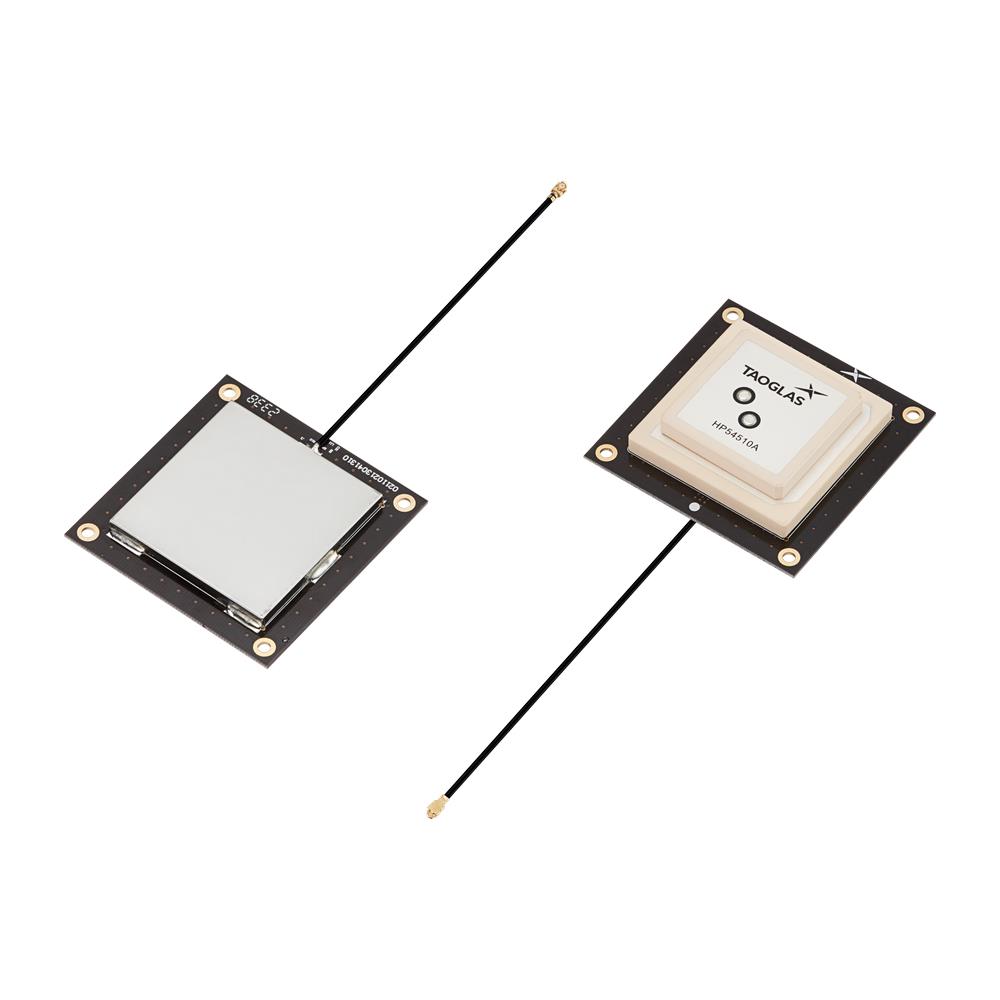

The AHP54510.07.0100C is an active, wide-band dual-stacked ceramic patch antenna designed for high-precision GNSS applications. It operates within the frequency range of 1.593 to 1.61 GHz and supports multiple constellations including GPS L1/L5, Galileo, GLONASS, BeiDou, IRNSS, QZSS, SBAS, and L-Band signals. The component features a compact physical footprint measuring 45mm x 45mm x 10mm and provides an optimized gain of 4.15dBi. It is RoHS3 compliant and classified as an advanced directional antenna suitable for centimeter-level accuracy positioning.
Antennas RF Feature Summary
- Advanced wide-band dual-stacked ceramic patch construction
- Optimized gain for multi-constellation high-precision positioning
- Supports GPS L1/L5, L-Band, Galileo, GLONASS, and BeiDou
Antennas RF Applications
- High precision GPS and BeiDou navigation systems
- Fast positioning autonomous platforms
- Centimeter accuracy surveying equipment
Antennas RF Procurement Notes
Verify that the specific ordering suffix matches the required configuration, as variations may exist within the product family. Confirm RoHS3 compliance status if environmental regulations are strict. Ensure the active antenna interface requirements align with the receiving system's power and signal specifications before finalizing procurement.
Antennas RF Selection Notes
Select this model when high-precision, multi-band GNSS reception is required in a compact form factor. The dual-stacked design offers enhanced performance for challenging environments compared to standard single-band units. Consider the directional nature of the antenna for installation orientation relative to satellite visibility.
Antennas RF Part Context
This component belongs to Taoglas' Levity multi-band product family, which includes models like the AHP24510. These products are engineered specifically for high-precision applications requiring fast positioning and robust signal acquisition across multiple global navigation satellite systems.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Evaluate other models within the Levity family, such as the AHP24510, for potential compatibility based on specific application requirements.
