AHSC-1201I
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：10 BASE T COUPLING FILTER LAN
- Series：-
- Mfr：Allied Components International
- Package：Tape & Reel (TR)
- Transformer Type：LAN 10/100 Base-T, Power over Ethernet (PoE)
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1:1 Transmitter, 1:1 Receiver
- Mounting Type：Surface Mount
- Size / Dimension：0.665" L x 0.449" W (16.90mm x 11.40mm)
- Height - Seated (Max)：0.333" (8.45mm)
- Operating Temperature：-40°C ~ 85°C
- Grade：-
- Qualification：-
Download product information
Overview

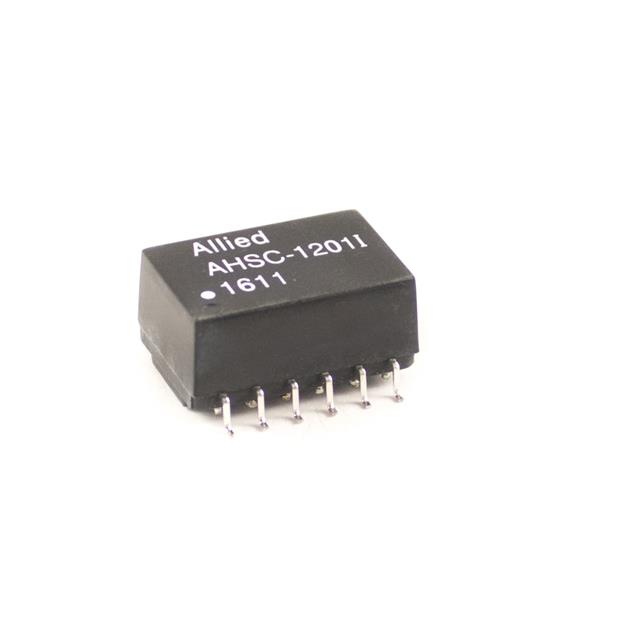

The AHSC-1201I is a 10/100BASE-T coupling filter LAN transformer manufactured by Allied Components International. It features 12 pins and supports PoE+ power delivery over Ethernet. The component operates within a temperature range of -40°C to +85°C. Physical dimensions are 16.90 mm in length, 15.00 mm in width, and 8.45 mm in height.
Feature Summary
- Supports PoE+ power transmission for powered devices
- Compatible with 10/100 Mbps Ethernet speeds
- Designed for robust operation across extended industrial temperature ranges
Applications
- PoE-enabled network infrastructure equipment
- Industrial Ethernet communication modules
- LAN coupling and filtering circuits
Procurement Notes
Verify RoHS3 compliance status through official datasheets or manufacturer documentation before procurement. Confirm pin configuration and physical footprint compatibility with target PCB layouts. Ensure the specific variant matches the required PoE+ specifications and operating temperature range for the intended application environment.
Selection Notes
Select this component when PoE+ support is required for 10/100BASE-T applications. Consider the 12-pin package and specified dimensions for board space constraints. Validate thermal performance requirements against the -40°C to +85°C operating range to ensure reliability under expected environmental conditions.
Part Context
Allied Components International specializes in magnetic components including transformers and custom magnetics. The AHSC-1201I belongs to their LAN transformer portfolio designed for standard Ethernet connectivity. This product line focuses on providing reliable signal coupling and isolation for network interfaces.
Replacement Considerations
Cross-reference with other Allied Components International models such as AGSC-2408PI for similar magnetic functions. Verify pinout and electrical characteristics match before substituting. Consult official replacement guides for confirmed compatible alternatives.
