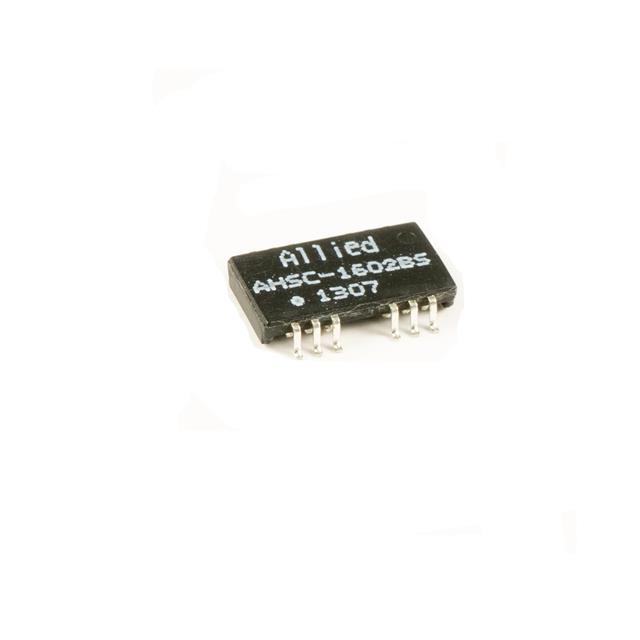

AHSC-1602BS

Overview

The AHSC-1602BS is a single-port LAN filter designed for 10/100/1000BASE-T applications. It features a low-profile form factor with dimensions of 12.70mm length, 9.60mm width, and 2.27mm height. The component utilizes a 16-pin configuration and operates within a temperature range of 0°C to +70°C. It supports non-PoE power standards and is intended for high-speed data transmission filtering in network interfaces.

Feature Summary

• Supports 10/100/1000BASE-T Ethernet standards
• Low-profile single-port design
• Integrated signal filtering capabilities

Applications

• Ethernet network interface cards
• Computer motherboards
• Network switches and routers

Procurement Notes

Verify the specific datasheet version to confirm pinout compatibility and mechanical tolerances. Ensure the application environment remains within the specified 0°C to +70°C operating range. Confirm that the non-PoE specification aligns with the target circuit design requirements before integration.

Selection Notes

Select this component for applications requiring compact, single-port Ethernet filtering solutions. The low-profile package suits space-constrained designs. Verify that the 16-pin configuration matches the PCB footprint and that the device meets the necessary EMI suppression standards for the target market.

Part Context

This part belongs to Allied Components International's LAN filter portfolio, specifically targeting single-port connectivity. It serves as a passive component solution for signal integrity enhancement in gigabit Ethernet environments, distinguishing itself through its compact physical dimensions compared to larger multi-port alternatives.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Cross-reference with other single-port 10/100/1000BASE-T filters from Allied Components International or other manufacturers only if mechanical and electrical specifications match exactly.
