AHSC-1607PI

Overview

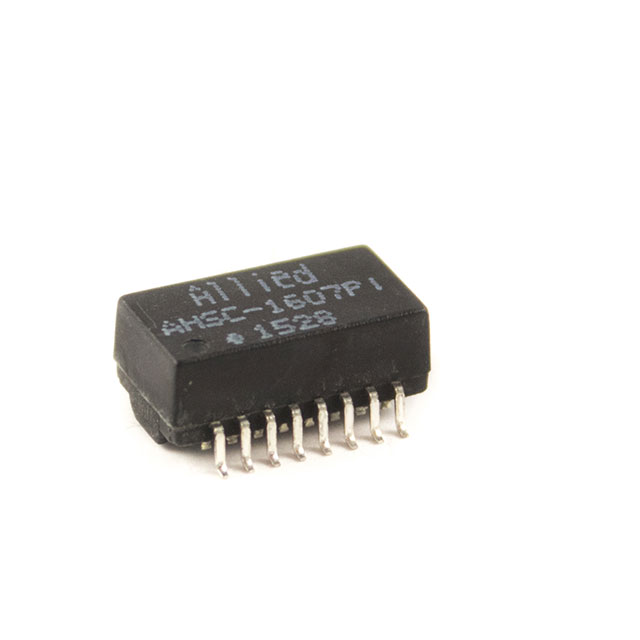

The AHSC-1607PI is a pulse transformer module manufactured by Allied Components International, designed for 10/100 Base T Power over Ethernet (PoE) LAN applications. It features a 1CT:1CT winding configuration and provides an inductance of 350uH. This component serves as a filter module for integrated network connectivity.

Feature Summary

• Integrated PoE LAN filtering solution
• Supports 10/100 Base T standards
• Compact module form factor

Applications

• 10/100 Base T network interface circuits
• Power over Ethernet (PoE) powered devices
• LAN port signal conditioning

Procurement Notes

Verify the specific datasheet version from Allied Components International to confirm mechanical dimensions and electrical tolerances. Ensure compatibility with the target PCB footprint and thermal requirements before integration. Cross-reference the part number to distinguish between similar variants such as the AHSC-1607PS.

Selection Notes

Select this component when a combined pulse transformer and filter is required for Gigabit or Fast Ethernet interfaces. The 1CT:1CT ratio suits standard differential line driving. Consider the 350uH inductance value for appropriate common-mode noise suppression in PoE environments.

Part Context

This part belongs to the AHSC series of LAN filter modules. It is distinct from other Allied Components inductors like the PCSV80 series. The PI suffix typically denotes the PoE variant within the 1607 family, differentiating it from single-port non-PoE versions.

Replacement Considerations

Check for direct substitutes within the AHSC-1607 series. Verify pinout compatibility with existing designs. No specific cross-references are confirmed in public documentation.
