AHSC-1618PS

Overview

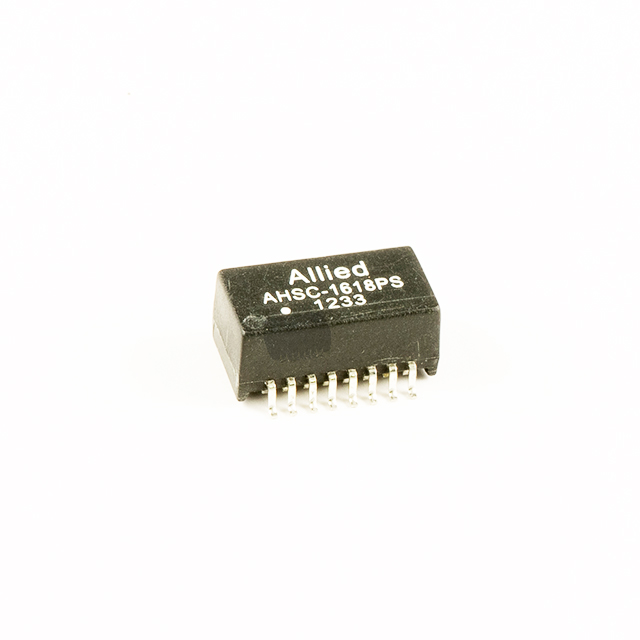

The AHSC-1618PS is a single-port Power over Ethernet (PoE) LAN filter module manufactured by Allied Components International. Designed for 10/100 Base-T applications, this component integrates pulse transformer functionality with filtering capabilities. The device supports a transmission ratio of 1CT:1CT and a receiver ratio of 1CT:1CT. It features a surface mount package suitable for automated assembly processes in network interface equipment.

Feature Summary

• Integrates PoE filtering and pulse transformation for single-port LAN applications
• Supports 10/100 Base-T data rates with specified current transformer ratios
• Surface mount design optimized for standard PCB assembly workflows

Applications

• Single-port Power over Ethernet network interfaces
• 10/100 Base-T LAN filter modules
• Network adapter circuitry requiring integrated signal conditioning

Procurement Notes

Verify the specific datasheet version when sourcing, as specifications are subject to change without notice. Confirm that the required 1CT:1CT transformer configuration matches the system design requirements. Ensure the surface mount footprint aligns with the target PCB layout before finalizing procurement orders.

Selection Notes

Select this component for designs requiring a combined PoE filter and pulse transformer solution. It is appropriate for 10/100 Base-T systems rather than Gigabit Ethernet applications. Consider the single-port limitation when designing multi-port network interfaces.

Part Context

This part belongs to the AHSC series of LAN filter modules from Allied Components International. It serves as a specialized passive component for network connectivity, distinct from general-purpose inductors or transformers found in other product lines.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer catalogs for direct equivalents.
