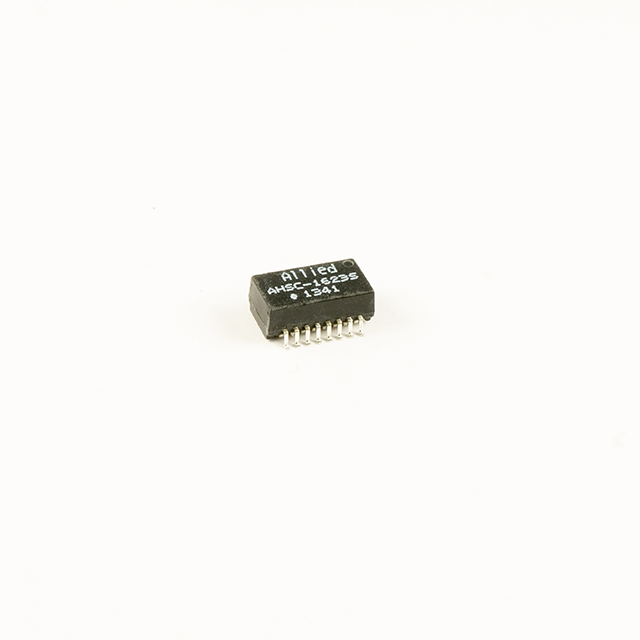

AHSC-1623S

$2.76

Description：10/100 BASE-T SINGLE PORT LAN FI
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:5afc14eced7f Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10/100 BASE-T SINGLE PORT LAN FI
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.504" L x 0.272" W (12.80mm x 6.90mm)
Height - Seated (Max)：0.248" (6.30mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

AHSC-1623S

Overview

The AHSC-1623S is a LAN pulse transformer designed for 10/100 Base-T applications. It features a 350µH inductance and a 1CT:1CT configuration for both transmitter and receiver channels. The component supports Surface Mount Device (SMD) packaging, facilitating automated assembly processes. It is engineered to provide signal isolation and impedance matching for Ethernet network interfaces.

Feature Summary

Supports 10/100 Base-T Ethernet standards
Integrated pulse transformer functionality
Surface mount device construction

Applications

Ethernet network interface cards
LAN port circuitry
Network switch hardware

Procurement Notes

Verify the specific suffix variant required for your design, such as AHSC-1623S-UL, if UL certification is mandatory. Confirm that the surface mount footprint matches your PCB layout specifications. Ensure the 1CT:1CT winding configuration aligns with your schematic requirements before finalizing procurement.

Selection Notes

Select this component for designs requiring standard 10/100 Base-T isolation. The SMD package is suitable for high-volume manufacturing. Consider the AHSC-1623S-UL variant if regulatory compliance documentation is a priority. Verify inductance values against system impedance requirements.

Part Context

Allied Components International manufactures magnetic components for data communication. This part belongs to the LAN filter module series. It serves as a critical passive element in Ethernet physical layer circuits. The product line focuses on compact, reliable solutions for network connectivity.

Replacement Considerations

Public confirmed substitute part numbers include AHSC-4451I, AGSC-2424PI-UL, and AGSC-2401S-UL. These alternatives are listed in cross-reference data. Verify electrical compatibility and pinout alignment before substitution.
