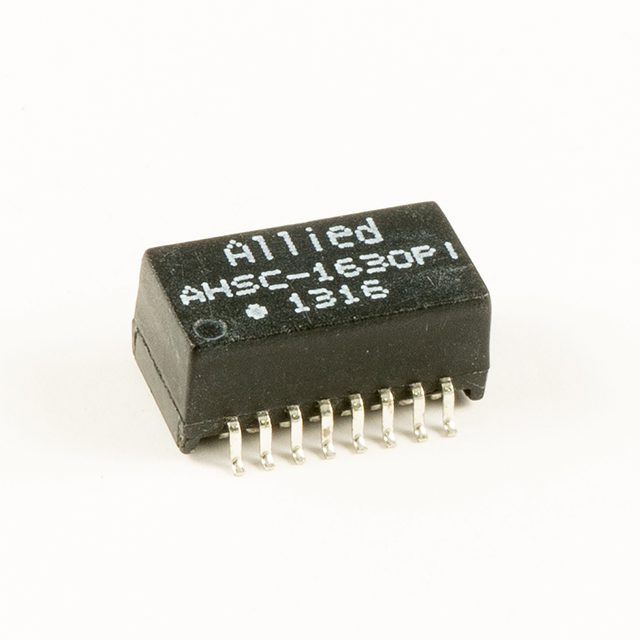

AHSC-1630PI

$2.13

Description：10/100 BASE T SINGLE PORT POE LA
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:e526a3020df4 Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10/100 BASE T SINGLE PORT POE LA
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 10/100 Base-T, Power over Ethernet (PoE)
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.504" L x 0.272" W (12.80mm x 6.90mm)
Height - Seated (Max)：0.248" (6.30mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

AHSC-1630PI

Overview

The AHSC-1630PI is a single-port LAN pulse transformer module designed for 10/100 Base-T Ethernet applications. It integrates Power over Ethernet (PoE) capabilities with a 350µH inductance rating. The component features a 1CT:1CT transmitter and 1CT:1CT receiver configuration, supporting simultaneous data transmission and power delivery. It utilizes a surface mount package for automated assembly integration.

Feature Summary

Integrates 10/100 Base-T signal filtering with PoE power injection
Supports simultaneous data and power transmission on a single port
Surface mount design for efficient PCB layout

Applications

Ethernet switch ports requiring PoE support
Access point network interfaces
IP camera power and data modules

Procurement Notes

Verify RoHS3 compliance status prior to procurement. Confirm the specific manufacturer datasheet version matches the required electrical specifications. Ensure the surface mount footprint aligns with the target PCB design. Validate that the 1CT:1CT configuration meets the system's isolation requirements.

Selection Notes

Select this component for applications requiring integrated PoE and 10/100 Base-T functionality in a compact form factor. Consider the 350µH inductance value for compatibility with standard Ethernet line transformers. Evaluate the surface mount package size against available board space constraints.

Part Context

This part belongs to Allied Components International's range of magnetic components and modules. It serves as a specialized filter module for single-port LAN applications. The product supports both data signaling and power delivery within a unified component structure.
