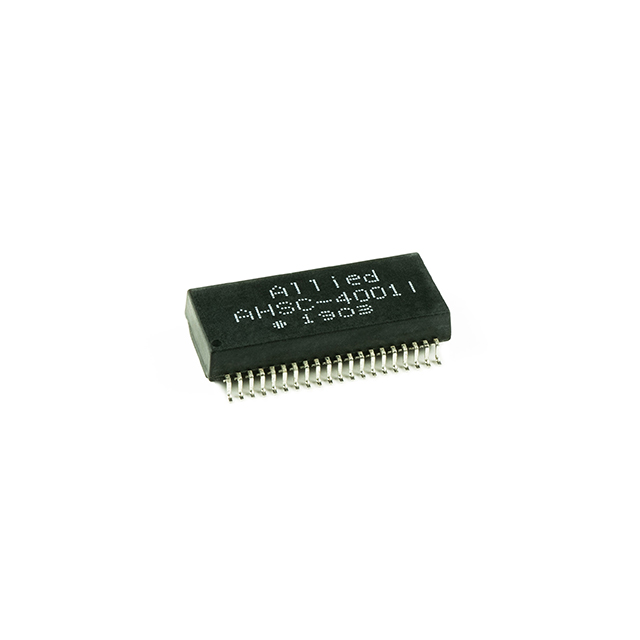

AHSC-4001I

$3.83

Description：10/100 BASE T QUAD PORT LAN FILT
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:86b473a7ad58 Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10/100 BASE T QUAD PORT LAN FILT
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：1.106" L x 0.476" W (28.10mm x 12.10mm)
Height - Seated (Max)：0.244" (6.20mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

AHSC-4001I

Overview

The AHSC-4001I is a pulse transformer manufactured by Allied Components International, designed for 10/100 Base-T Quad Port LAN applications. It functions as a LAN filter to isolate and filter signals in Ethernet connections. The component features a 1CT:1CT configuration with an inductance of 350uH. This part is categorized under Pulse Transformers and serves as a critical element for maintaining signal integrity in networking hardware.

Feature Summary

Designed for 10/100 Base-T Quad Port LAN filtering
Provides signal isolation and filtering for Ethernet connections
Features a 1CT:1CT transformer configuration

Applications

10/100 Base-T network interface cards
Ethernet switch ports requiring quad port filtering
LAN filter modules for signal integrity

Procurement Notes

Verify the specific datasheet version from Allied Components International before procurement. Confirm that the 1CT:1CT configuration and 350uH inductance match your circuit requirements. Ensure compatibility with 10/100 Base-T Quad Port standards. Check for any ordering suffixes that may affect pinout or packaging. Validate component authenticity through authorized distributors.

Selection Notes

Select this component when designing systems requiring isolated pulse transformers for 10/100 Base-T Quad Port LAN applications. The 1CT:1CT configuration is suitable for standard Ethernet signaling needs. Consider the 350uH inductance value for impedance matching. Ensure the physical package dimensions fit the PCB layout constraints. Verify thermal performance requirements for the intended operating environment.

Part Context

The AHSC-4001I belongs to the family of pulse transformers used in networking equipment. It is specifically engineered for LAN filtering tasks within 10/100 Base-T environments. Allied Components International produces this component to support reliable Ethernet connectivity. The part is distinct from general-purpose transformers due to its specialized application in data communication interfaces.
