AHSC-4196I

$4.89

Description：10/100 LAN Module
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:66af5f8c8913 Category: Pulse Transformers Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：10/100 LAN Module
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Transformer Type：LAN 10/100 Base-T, Power over Ethernet (PoE)
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1:1 Transmitter, 1:1 Receiver
Mounting Type：Surface Mount
Size / Dimension：0.504" L x 0.268" W (12.80mm x 6.80mm)
Height - Seated (Max)：0.244" (6.20mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

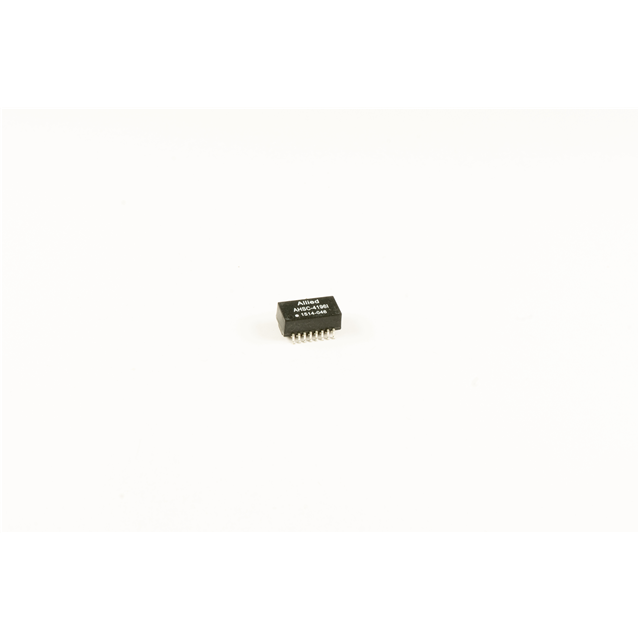

AHSC-4196I

Overview

The AHSC-4196I is a single-port LAN filter module designed for 10/100 Base T Ethernet applications. It supports Power over Ethernet Plus (PoE+) functionality, enabling simultaneous data transmission and power delivery over standard twisted-pair cabling. The component integrates magnetic filtering to ensure signal integrity and compliance with electromagnetic interference standards in network infrastructure.

Feature Summary

Supports 10/100 Base T Ethernet data rates
Enables PoE+ power delivery over single port
Integrates LAN filtering for signal integrity

Applications

Ethernet network interface cards
PoE-powered access points
VoIP telephony systems

Procurement Notes

Verify RoHS compliance status through official manufacturer documentation prior to procurement. Confirm that the specific ordering suffix matches the required pin configuration and isolation voltage ratings for your design. Ensure compatibility with PoE+ power sourcing equipment specifications.

Selection Notes

Select this module when a compact, single-port solution is required for 10/100 Mbps networks with PoE+ capabilities. Evaluate physical footprint constraints against the module's dimensions. Verify that the integrated filtering meets the specific EMI requirements of the target application environment.

Part Context

Allied Components International manufactures custom and standard magnetic components for networking and industrial markets. The AHSC-4196I belongs to their LAN filter series, providing integrated magnetics for Ethernet connectivity. This product line supports commercial and industrial designs requiring reliable data and power transmission.

Replacement Considerations

Consult official Allied Components International substitution guides for verified equivalent part numbers. Generic cross-references may not match PoE+ specifications or isolation requirements.
