AHSC-4400I

Overview

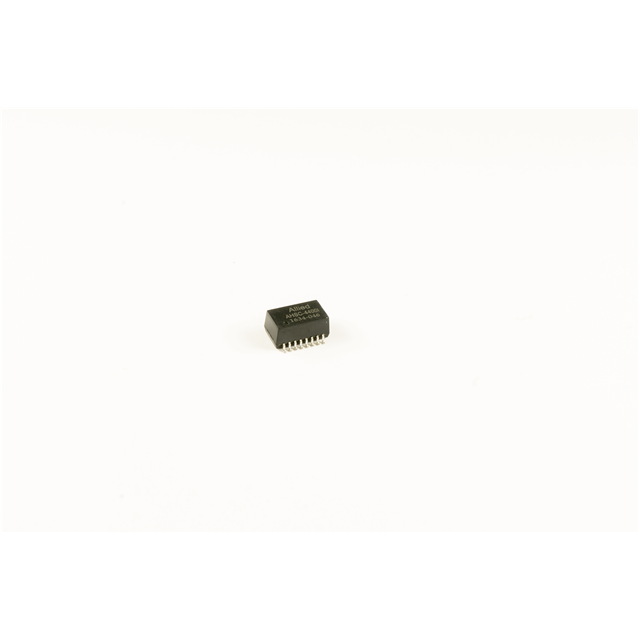

The AHSC-4400I is a LAN filter module designed for 10/100 Base-T networks with Power over Ethernet (PoE) support. It features a dual configuration with 1:1 transmitter and receiver sections. The component integrates a common mode choke with an inductance of 350µH. It utilizes a surface mount package suitable for automated assembly processes.

Feature Summary

• Supports 10/100 Base-T data transmission standards
• Enables Power over Ethernet (PoE) functionality
• Integrates LAN filtering and isolation components

Applications

• Ethernet network interface cards
• PoE-enabled networking equipment
• Industrial communication modules

Procurement Notes

Verify the specific datasheet version to confirm pinout compatibility and RoHS status. Ensure the surface mount footprint matches the PCB design requirements. Cross-reference the manufacturer's part number to avoid confusion with similar models in the AHSC series.

Selection Notes

Select this component when PoE capability is required for 10/100 Mbps applications. Consider the physical dimensions and mounting style for space-constrained designs. Evaluate thermal performance if high power dissipation is expected in the application environment.

Part Context

Allied Components International manufactures magnetic components for data communication. This module belongs to the LAN filter family, providing integrated solutions for network connectivity. The product line focuses on standard and custom magnetic designs for various industrial and commercial applications.

Replacement Considerations

Check for direct substitutes within the Allied Components AHSC series. Verify electrical parameters such as inductance and isolation voltage before substitution. Confirm mechanical compatibility with existing board layouts.
