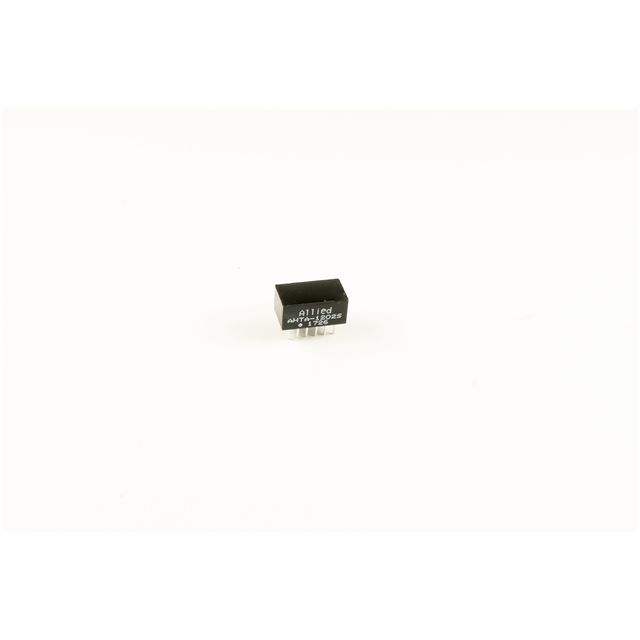

AHTA-1202S

Overview

The AHTA-1202S is a magnetic module designed for 10/100 Base T LAN applications. It functions as an integrated pulse transformer and filter component, facilitating signal transmission in Ethernet networks. The device supports standard data rates of 10 Mbps and 100 Mbps, ensuring compatibility with common network interfaces. This module provides essential isolation and impedance matching required for reliable data communication over twisted-pair cabling.

Feature Summary

• Integrated pulse transformer functionality for signal coupling
• Built-in filtering capabilities for noise reduction
• Supports 10/100 Base T Ethernet standards

Applications

• Ethernet network interface cards
• LAN connection ports
• Network switch hardware

Procurement Notes

Verify the manufacturer part number AHTA-1202S against official Allied Components International documentation to confirm specifications. Ensure the component matches the required 10/100 Base T application. Cross-reference datasheets for pinout and electrical characteristics before integration into design projects.

Selection Notes

Select this component for designs requiring integrated magnetic solutions for 10/100 Mbps Ethernet connections. Consider its form factor and mounting requirements relative to the PCB layout. Verify that the module meets the specific isolation and impedance needs of the target network interface circuit.

Part Context

Allied Components International manufactures magnetic components and modules for various industries. The AHTA-1202S belongs to their range of LAN filter modules and transformers. These products are engineered to support standard networking protocols and provide necessary signal conditioning for digital communication systems.

Replacement Considerations

Consult official substitution lists from Allied Components International for verified equivalents. Generic replacements may not match the specific electrical characteristics or pin configuration required for the 10/100 Base T application.
