AIAP-01-151K-T

Fixed Inductors Overview

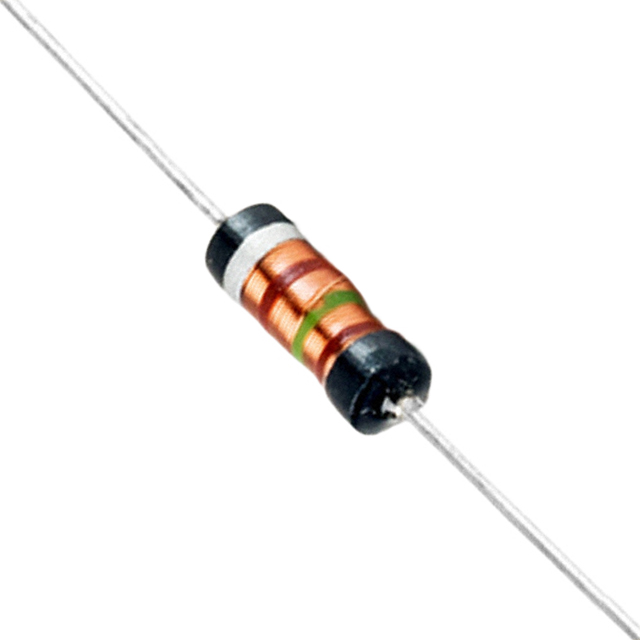

The Abracon AIAP-01-151K-T is a fixed axial leaded power inductor from the AIAP-01 series. It features a wirewound construction with an unshielded design and ferrite core material. The nominal inductance is 150 µH with a tolerance of ±10%. The component supports a maximum DC current of 410 mA and has a maximum DC resistance of 1.2 Ω. It operates within a temperature range of -40°C to +105°C. Physical dimensions include a length of 9.14 mm and a diameter of 3.3 mm, suitable for PCB mount applications.

Fixed Inductors Feature Summary

• Axial leaded wirewound construction for through-hole mounting
• Unshielded design utilizing ferrite core technology
• Clear epoxy coating for environmental protection

Fixed Inductors Applications

• General purpose power filtering circuits
• DC-DC converter input/output stages
• Signal processing choke applications

Fixed Inductors Procurement Notes

Verify specific ordering suffixes against official Abracon documentation to ensure correct packaging and tolerance specifications. Confirm RoHS compliance status directly with the manufacturer or authorized distributors prior to procurement. Ensure that the selected variant matches the required thermal and electrical ratings for the target application environment.

Fixed Inductors Selection Notes

Select this component when axial leaded form factors are required for high-current power applications. Evaluate the 410 mA saturation limit and 1.2 Ω DCR against circuit load requirements. Consider the unshielded nature for potential EMI constraints and verify PCB hole spacing matches the 9.14 mm length and 3.3 mm diameter physical profile.

Fixed Inductors Part Context

This part belongs to the Abracon AIAP-01 series of power inductors. The series offers various inductance values and current ratings within a standardized axial package. It serves as a passive energy storage and filtering element in electronic systems requiring robust through-hole components.

Fixed Inductors Replacement Considerations

Cross-reference with other axial leaded inductors offering 150 µH ±10% and similar current ratings. Verify mechanical footprint compatibility and electrical parameter equivalence before substitution.
