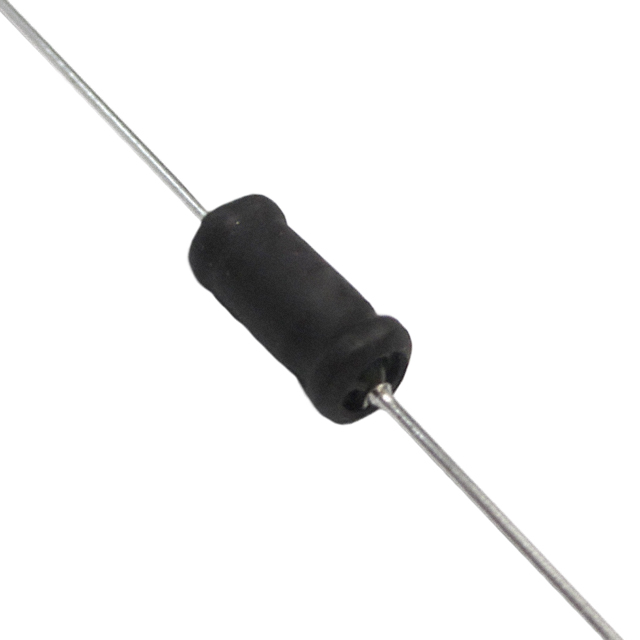

AIAP-02-100K is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 10UH 4.1A 33 MOHM TH. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for AIAP-02-100K
- Description：FIXED IND 10UH 4.1A 33 MOHM TH
- Series：AIAP-02
- Mfr：Abracon LLC
- Package：Bulk
- Type：Wirewound
- Material - Core：-
- Inductance：10 µH
- Tolerance：±10%
- Current Rating (Amps)：4.1 A
- Current - Saturation (Isat)：-
- Shielding：Unshielded
- DC Resistance (DCR)：33mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-40°C ~ 85°C
- Inductance Frequency - Test：1 kHz
- Mounting Type：Through Hole
- Package / Case：Axial
- Supplier Device Package：-
- Size / Dimension：0.252" Dia x 0.551" L (6.40mm x 14.00mm)
- Height - Seated (Max)：-
- Features：-
Fixed Inductors datasheet and documents for AIAP-02-100K
Fixed Inductors Overview
The Abracon AIAP-02-100K is a fixed axial leaded power inductor from the AIAP-02 series. It features an unshielded wirewound construction with a nominal inductance of 10 µH. The component supports a maximum DC current of 4.1 A for both temperature rise and saturation limits. Its maximum DC resistance is specified at 33 mΩ. The device utilizes metal alloy or carbonyl powder molding to reduce core losses.
Fixed Inductors Feature Summary
- Unshielded wirewound design for high reliability
- Metal alloy or carbonyl powder molding reduces core losses
- Axial leaded package for through-hole mounting
Fixed Inductors Applications
- Transportation systems
- Aerospace and defense electronics
- Communication equipment
- Medical devices
Fixed Inductors Procurement Notes
Verify the specific ordering suffix and tolerance code against the manufacturer's official datasheet before procurement. Confirm that the standard lead time aligns with project schedules, as availability may vary. Ensure the selected component meets all environmental and reliability requirements for the intended extreme operating conditions.
Fixed Inductors Selection Notes
Select this component when high power density and efficiency are required in axial form factors. The 4.1 A current rating suits applications needing robust performance under load. Consider the unshielded nature for layout planning to manage electromagnetic interference in sensitive circuits.
Fixed Inductors Part Context
This part belongs to the AIAP-02 series of axial power inductors manufactured by Abracon LLC. The series is designed for applications requiring high reliability in extreme environments. Other variants in the series offer different inductance values and current ratings while maintaining similar construction methods.
Fixed Inductors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing circuit designs if considering alternative axial power inductors from other manufacturers.
