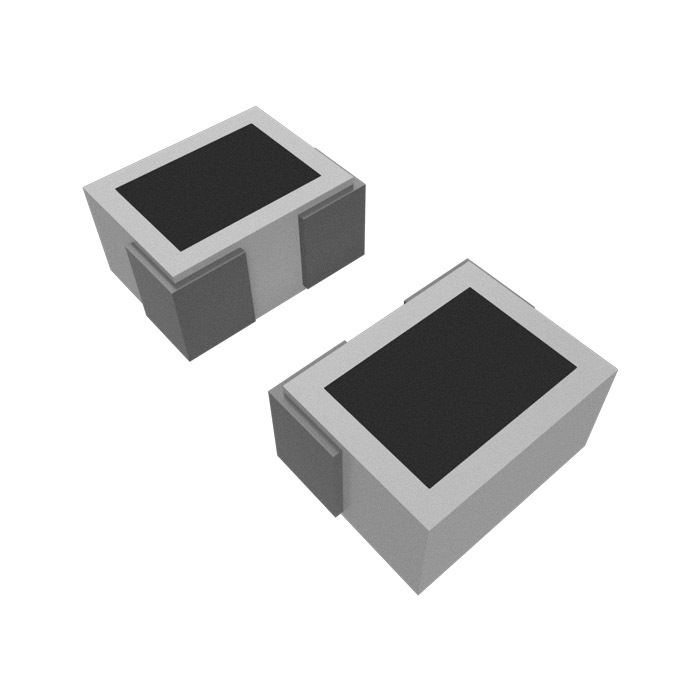

AIMC-04UHQ-1N2S-T

AIMC-04UHQ-1N2S-T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is IND 1.2 NH 0.8A 70 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for AIMC-04UHQ-1N2S-T

• Description：IND 1.2 NH 0.8A 70 MOHM SMD
• Series：AIMC-04UHQ
• Mfr：Abracon LLC
• Package：Tape & Reel (TR)
• Type：Multilayer
• Material - Core：Ceramic
• Inductance：1.2 nH
• Tolerance：±0.3nH
• Current Rating (Amps)：800 mA
• Current - Saturation (Isat)：-
• Shielding：Shielded
• DC Resistance (DCR)：70mOhm Max
• Q @ Freq：14 @ 500MHz
• Frequency - Self Resonant：13GHz
• Ratings：-
• Operating Temperature：-55°C ~ 125°C
• Inductance Frequency - Test：500 MHz
• Mounting Type：Surface Mount
• Package / Case：01005 (0402 Metric)
• Supplier Device Package：01005 (0402 Metric)
• Size / Dimension：0.016" L x 0.008" W (0.40mm x 0.20mm)
• Height - Seated (Max)：0.013" (0.32mm)
• Features：-

Fixed Inductors datasheet and documents for AIMC-04UHQ-1N2S-T
