AIMC-Q0201HQ-1N0C-T

Fixed Inductors Overview

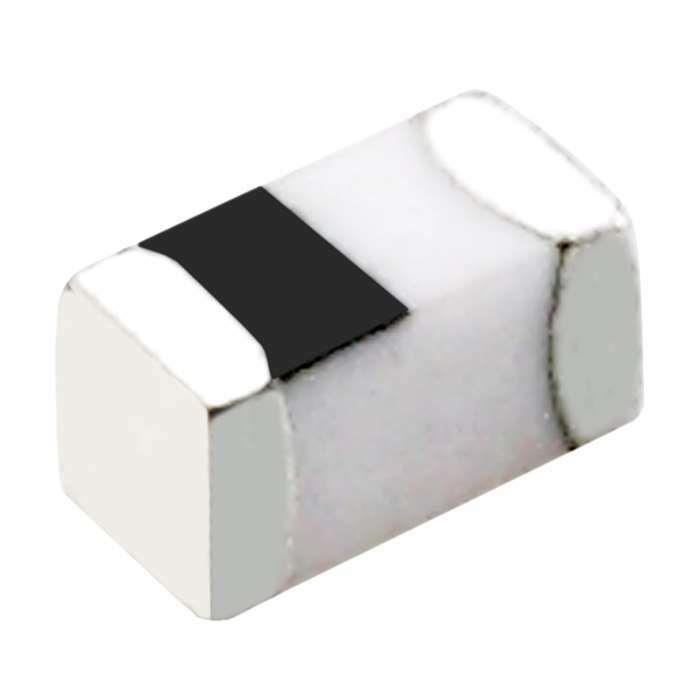

The AIMC-Q0201HQ-1N0C-T is a multilayer ceramic chip inductor from the AIMC-Q series, designed for high-frequency RF applications. It features a shielded construction within a compact 0201 (0603 metric) surface-mount package. The component provides an inductance of 1.0 nH with a tolerance of ±0.1 nH. It supports a maximum DC current of 500 mA and maintains a maximum DC resistance of 200 mOhms. The device operates reliably between -55°C and +125°C, ensuring stability in demanding environments.

Fixed Inductors Feature Summary

• Shielded multilayer ceramic construction minimizes electromagnetic interference
• High self-resonant frequency capability for ultra-high frequency circuits
• Automotive-grade qualification ensures reliability under thermal stress

Fixed Inductors Applications

• RF matching networks in wireless communication modules
• Impedance matching in mobile device antenna systems
• Filtering components in high-speed digital signal processing

Fixed Inductors Procurement Notes

Verify the specific suffix 'C' against official Abracon documentation to confirm tolerance and performance characteristics. Ensure the procurement channel sources genuine components with valid traceability. Cross-reference the datasheet for any recent updates to electrical parameters or packaging specifications before finalizing orders.

Fixed Inductors Selection Notes

Select this component when a 1.0 nH inductance value is required in an extremely compact footprint. The shielded design is suitable for dense PCB layouts where crosstalk must be minimized. Consider the 500 mA current rating and low DCR for power efficiency requirements in portable electronic devices.

Fixed Inductors Part Context

This part belongs to the AIMC-Q series, which is qualified to AEC-Q200 Grade 1 standards. The series utilizes a ceramic base material optimized for high self-resonant frequencies. It is manufactured on TS16949 certified production lines, supporting automotive and industrial IoT applications requiring robust component performance.

Fixed Inductors Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Verify compatibility with existing designs by comparing electrical parameters such as inductance, tolerance, current rating, and physical dimensions.
