AIMC-Q0201HQ-2N2S-T

Fixed Inductors Overview

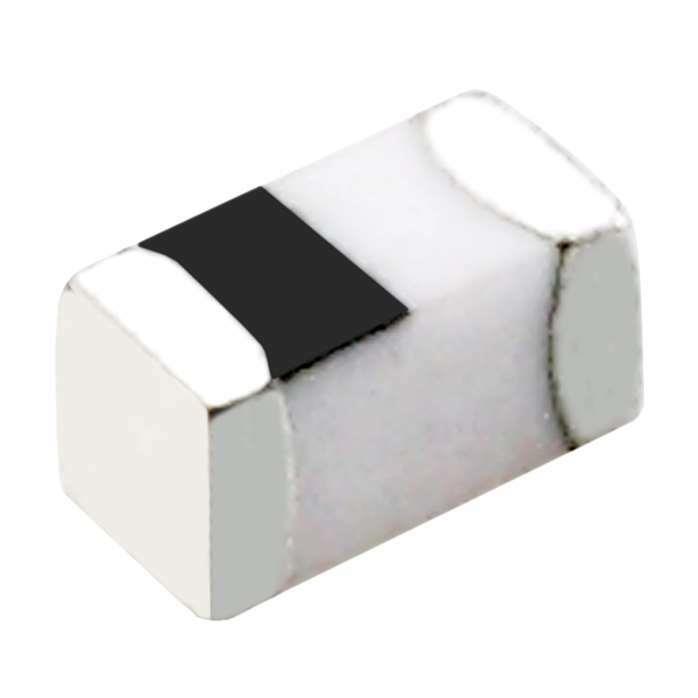

The AIMC-Q0201HQ-2N2S-T is a multilayer ceramic chip inductor manufactured by Abracon LLC. It features an inductance of 2.2 nH with a tolerance of 0.3 nH. The component operates within a temperature range of -55°C to +125°C and has a maximum DC current rating of 600 mA. Its maximum DC resistance is 150 mOhms, and it exhibits a minimum Q factor of 14. The device utilizes a shielded design and is housed in a compact 0201 (0603 metric) surface-mount package.

Fixed Inductors Feature Summary

• Multilayer ceramic construction for stable RF performance
• Shielded design to minimize electromagnetic interference
• Compact 0201 surface-mount footprint for high-density layouts

Fixed Inductors Applications

• Automotive electronics systems
• RF circuit matching networks
• High-frequency signal filtering

Fixed Inductors Procurement Notes

Verify the specific suffix 'S' against official Abracon documentation to confirm shielding status and tolerance class. Ensure the selected variant matches the required inductance value and current handling capabilities for the target application. Cross-reference the datasheet for precise dimensional tolerances and thermal characteristics before finalizing procurement specifications.

Fixed Inductors Selection Notes

Select this component when a shielded inductor is required for space-constrained designs. The 0201 package size supports high-density PCB layouts. Verify that the 600 mA current rating and 150 mOhm resistance meet the circuit's power and efficiency requirements. Confirm compatibility with the operating temperature range of -55°C to +125°C.

Fixed Inductors Part Context

This part belongs to the AIMC-Q series of RF inductors from Abracon LLC. The series includes various inductance values and package sizes, such as 0402 and 0603. The Q-series typically targets automotive and industrial applications requiring robust performance. This specific model represents the smallest package option in the lineup.

Fixed Inductors Replacement Considerations

Direct substitutes include other Abracon models within the AIMC-Q0201HQ series with identical or compatible electrical parameters. Verify pinout and mechanical dimensions before replacing with components from different manufacturers.
