AISC-0402HP-2N0B-T

$0.20

Description：FIXED IND 2NH 2.1A 38 MOHM SMD
Series：AISC-0402HP
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:49d8372c243f Category: Fixed Inductors Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AISC-0402HP-2N0B-T is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 2NH 2.1A 38 MOHM SMD. Review the specifications below when checking this part for your BOM.

Fixed Inductors specifications for AISC-0402HP-2N0B-T

Description：FIXED IND 2NH 2.1A 38 MOHM SMD
Series：AISC-0402HP
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Type：Drum Core, Wirewound
Material - Core：Ceramic
Inductance：2 nH
Tolerance：±0.2nH
Current Rating (Amps)：2.1 A
Current - Saturation (Isat)：-
Shielding：Unshielded
DC Resistance (DCR)：38mOhm Max
Q @ Freq：22 @ 250MHz
Frequency - Self Resonant：8.5GHz
Ratings：-
Operating Temperature：-40°C ~ 125°C
Inductance Frequency - Test：250 MHz
Mounting Type：Surface Mount
Package / Case：0402 (1005 Metric)
Supplier Device Package：0402 (1005 Metric)
Size / Dimension：0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max)：0.024" (0.60mm)
Features：-

Fixed Inductors datasheet and documents for AISC-0402HP-2N0B-T

AISC-0402HP-2N0B-T

Fixed Inductors Overview

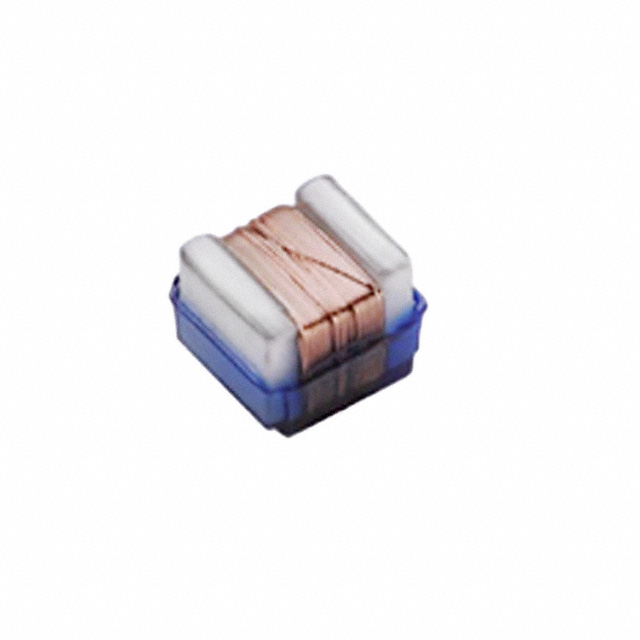

The AISC-0402HP-2N0B-T is a surface-mount ceramic wire-wound RF inductor manufactured by Abracon LLC. It features an unshielded drum core design housed in a compact 0402 (1005 metric) package with dimensions of 1.00mm x 0.50mm x 0.50mm. The component provides an inductance of 2.0 nH with a tolerance of ±0.2nH, rated for a maximum DC current of 1.8A and a maximum DC resistance of 30 milliohms. Operating within a temperature range of -40°C to +125°C, it achieves a minimum Q factor of 26 at 250 MHz and a self-resonant frequency of 7.9 GHz.

Fixed Inductors Feature Summary

High-current capability suitable for power-intensive RF applications
Ultra-low inductance value optimized for high-frequency signal paths
Robust ceramic construction ensuring stability across wide temperature ranges

Fixed Inductors Applications

RF matching networks in mobile communication devices
Impedance matching circuits in wireless LAN modules
High-frequency filtering components in broadband equipment

Fixed Inductors Procurement Notes

Verify the specific suffix 'B' against official Abracon documentation to confirm the exact tolerance class and tape-and-reel packaging specifications. Ensure that the requested quantity aligns with standard manufacturing reel sizes. Cross-reference the RoHS compliance status and lead time requirements directly with authorized distributors or the manufacturer before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when circuit designs require minimal parasitic inductance combined with high current handling capabilities. The 0402 footprint allows for dense PCB layouts in space-constrained portable electronics. Engineers should prioritize this part for applications where low DC resistance is critical to maintaining efficiency in high-frequency power delivery or signal transmission stages.

Fixed Inductors Part Context

This model belongs to the AISC-0402HP series, which represents Abracon's high-performance line of surface-mount chip inductors. These components are engineered specifically for demanding RF environments requiring superior Q factors and stable electrical characteristics under varying thermal conditions compared to standard general-purpose inductors.
