AISC-0805F-2R2J-T

Fixed Inductors Overview

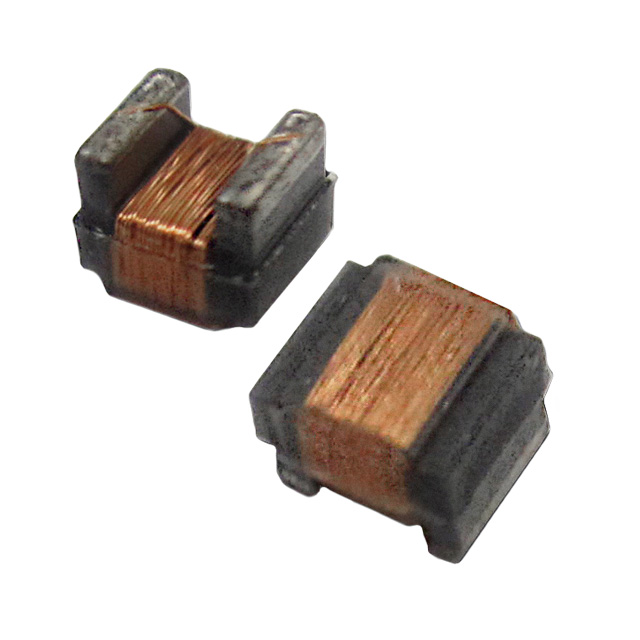

The AISC-0805F-2R2J-T is a fixed surface-mount inductor manufactured by Abracon LLC. It features a nominal inductance of 2.2 µH with a tolerance of ±5%. The component utilizes a wire-wound construction on a drum core, which is unshielded. It has a maximum DC resistance of 2.5 Ohms and a self-resonant frequency of 120 MHz. The rated current is specified at 100 mA. The device is housed in an 0805 (2012 Metric) package footprint.

Fixed Inductors Feature Summary

• Wire-wound construction on a drum core for stable inductance characteristics
• Unshielded design suitable for general-purpose applications
• Compliant with RoHS standards and lead-free manufacturing

Fixed Inductors Applications

• RF circuits requiring general-purpose inductance
• High-frequency signal processing components
• Commercial electronic equipment filtering

Fixed Inductors Procurement Notes

Verify the specific suffix 'T' indicates tape-and-reel packaging when ordering. Confirm that the 0805 footprint matches the target PCB layout dimensions. Ensure the 100 mA current rating meets the circuit requirements to prevent saturation. Check for RoHS compliance documentation if required by regulatory standards.

Fixed Inductors Selection Notes

Select this component for applications requiring a 2.2 µH inductance in a compact 0805 package. The unshielded nature requires consideration for electromagnetic interference in dense layouts. The wire-wound drum core offers high Q-factor performance compared to ferrite alternatives at similar frequencies. Verify thermal limits against operating conditions.

Fixed Inductors Part Context

This part belongs to the AISC-0805F series of fixed inductors from Abracon. The series includes various inductance values within the 0805 form factor. These components are designed for commercial and industrial applications, offering reliability through ceramic or ferrite core options depending on the specific variant.

Fixed Inductors Replacement Considerations

Cross-reference with other 0805 footprint inductors having 2.2 µH nominal value. Ensure substitute parts match the 2.5 Ohm max DC resistance and 100 mA current rating. Verify that alternative manufacturers offer compatible self-resonant frequencies near 120 MHz.
