AISC-Q0603-17NK-T

Fixed Inductors Overview

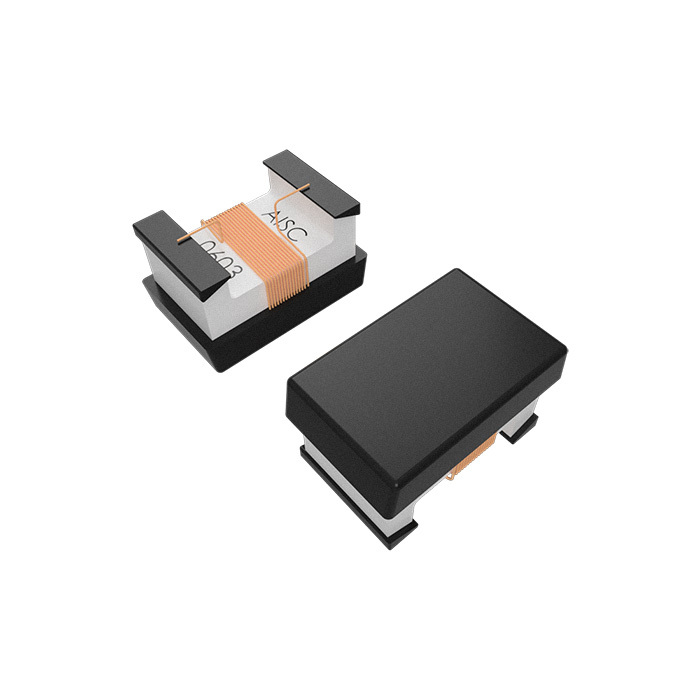

The AISC-Q0603-17NK-T is a fixed surface-mount RF inductor manufactured by Abracon LLC. It features an unshielded wirewound construction with a ceramic core, housed in a 1008 (2520 metric) package. The component provides an inductance of 17 nH with a tolerance of ±10%. It supports a maximum DC current of 700 mA and has a maximum DC resistance of 170 mOhms. The device operates within a temperature range of -40°C to +125°C.

Fixed Inductors Feature Summary

• Unshielded wirewound design for high-frequency RF applications
• High Q-factor performance suitable for filtering and impedance matching
• Robust ceramic core construction for thermal stability

Fixed Inductors Applications

• Automotive electronics
• Bluetooth modules
• Broadband network infrastructure
• Video camera circuits
• Wireless LAN systems

Fixed Inductors Procurement Notes

Verify the specific package dimensions against the official datasheet, as the model designation suggests a 0603 footprint but distributor data indicates a 1008 size. Confirm availability status directly with authorized distributors, as stock levels fluctuate. Ensure the selected variant matches the required inductance tolerance and current rating for the target circuit design before finalizing procurement orders.

Fixed Inductors Selection Notes

Select this component when designing RF circuits requiring low inductance values in the nanohenry range. The unshielded nature requires careful PCB layout to minimize electromagnetic interference coupling with adjacent traces. Verify that the 700 mA current rating exceeds the maximum expected operating current to prevent saturation. Consider the physical package size constraints during the mechanical design phase.

Fixed Inductors Part Context

This part belongs to the AISC-Q series of automotive-grade RF inductors from Abracon. These components are engineered for high reliability in demanding environments. The series offers various inductance values and package sizes to support diverse RF front-end requirements in modern communication devices.

Fixed Inductors Replacement Considerations

Cross-reference with other Abracon AISC-Q series parts for different inductance values. Check competitor offerings from manufacturers like Murata or TDK for equivalent unshielded wirewound RF inductors in similar packages.
