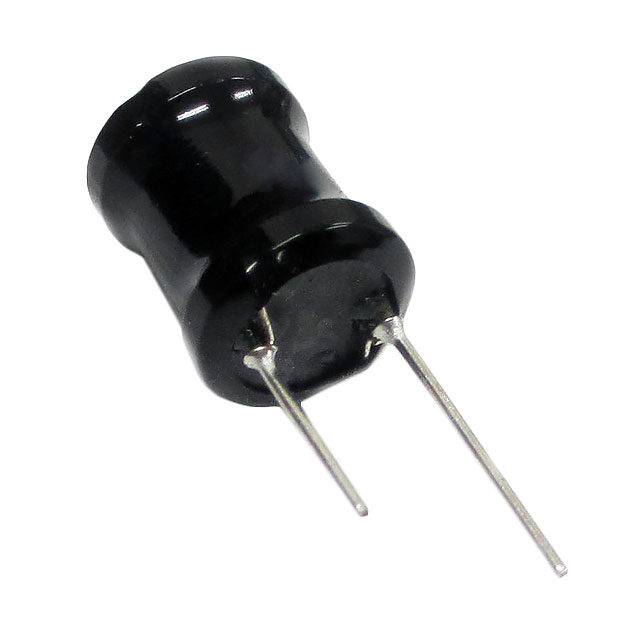

AIUR-16-120K is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is FIXED IND 12UH 1.3A 46 MOHM TH. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for AIUR-16-120K
- Description：FIXED IND 12UH 1.3A 46 MOHM TH
- Series：AIUR-16
- Mfr：Abracon LLC
- Package：Bulk
- Type：Drum Core, Wirewound
- Material - Core：Ferrite
- Inductance：12 µH
- Tolerance：±10%
- Current Rating (Amps)：1.3 A
- Current - Saturation (Isat)：1.55A
- Shielding：Unshielded
- DC Resistance (DCR)：46mOhm Max
- Q @ Freq：-
- Frequency - Self Resonant：-
- Ratings：-
- Operating Temperature：-25°C ~ 85°C
- Inductance Frequency - Test：10 kHz
- Mounting Type：Through Hole
- Package / Case：Radial, Vertical Cylinder
- Supplier Device Package：-
- Size / Dimension：0.276" Dia (7.00mm)
- Height - Seated (Max)：0.374" (9.50mm)
- Features：-
Fixed Inductors datasheet and documents for AIUR-16-120K
Fixed Inductors Overview
The AIUR-16-120K is an unshielded drum core wirewound power inductor from Abracon LLC. It features a radial vertical cylinder package with a 5 mm lead spacing and 0.64 mm lead diameter. The component provides an inductance of 12 µH with a 10% tolerance. It supports a maximum DC current of 1.3 A and has a maximum DC resistance of 46 mΩ. The operating temperature range spans from -40°C to +125°C, and it utilizes a ferrite core material.
Fixed Inductors Feature Summary
- Unshielded radial construction for standard PCB mounting
- Drum core wirewound design for power applications
- Ferrite core material ensuring stable performance
Fixed Inductors Applications
- Telecommunications equipment
- Automotive electronics
- Industrial control systems
- Consumer electronics
- Internet of Things (IoT) devices
Fixed Inductors Procurement Notes
Verify the specific manufacturer part number against official Abracon documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with target PCB footprint requirements, particularly regarding lead spacing and component height. Check for RoHS compliance status and any relevant environmental certifications required for the intended application market.
Fixed Inductors Selection Notes
Select this component based on the required 12 µH inductance value and the 1.3 A current rating suitable for the circuit design. Consider the unshielded nature of the inductor when planning PCB layout to manage potential magnetic interference with nearby sensitive components. Verify that the operating temperature range meets the environmental conditions of the final assembly.
Fixed Inductors Part Context
This component belongs to the AIUR series of unshielded radial power inductors manufactured by Abracon LLC. The series offers various inductance values tailored for general-purpose power filtering and energy storage applications. These inductors are designed for through-hole mounting on printed circuit boards.
Fixed Inductors Replacement Considerations
AIUR-16-102K
Fixed Inductors FAQ
What is the core type of the AIUR-16-120K?
The AIUR-16-120K uses a drum core type.
Is the AIUR-16-120K shielded?
No, the AIUR-16-120K is an unshielded inductor.
