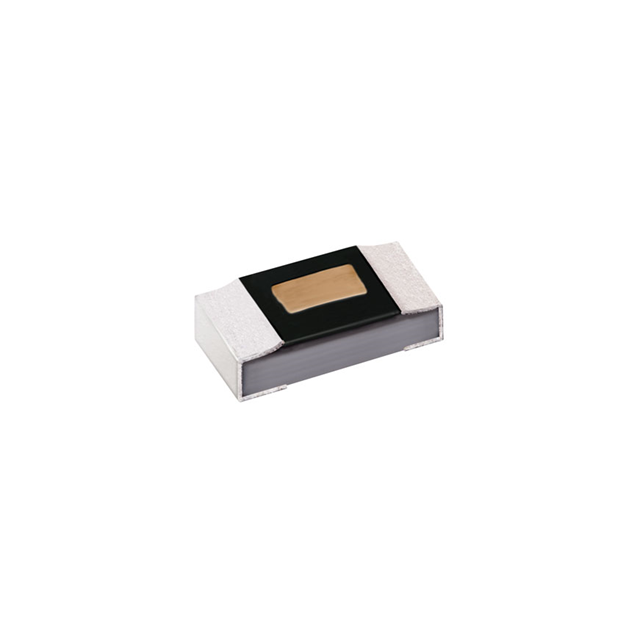

AL02BT3N3 is listed in the Fixed Inductors range at ChipApex. The manufacturer field lists Viking Tech. Its product description is FIXED IND 3.3NH 150MA 1 OHM SMD. Review the specifications below when checking this part for your BOM.
Fixed Inductors specifications for AL02BT3N3
- Description：FIXED IND 3.3NH 150MA 1 OHM SMD
- Series：AL
- Mfr：Viking Tech
- Package：Tape & Reel (TR)
- Type：Thin Film
- Material - Core：Ceramic
- Inductance：3.3 nH
- Tolerance：±0.1nH
- Current Rating (Amps)：150 mA
- Current - Saturation (Isat)：-
- Shielding：Shielded
- DC Resistance (DCR)：1Ohm Max
- Q @ Freq：8 @ 500MHz
- Frequency - Self Resonant：6GHz
- Ratings：-
- Operating Temperature：-40°C ~ 85°C
- Inductance Frequency - Test：-
- Mounting Type：Surface Mount
- Package / Case：0402 (1005 Metric)
- Supplier Device Package：402
- Size / Dimension：0.039" L x 0.020" W (1.00mm x 0.50mm)
- Height - Seated (Max)：0.015" (0.37mm)
- Features：-
Fixed Inductors datasheet and documents for AL02BT3N3
Fixed Inductors Overview
The AL02BT3N3 is a fixed thin film chip inductor manufactured by Viking Tech. It features an inductance of 3.3 nH and a maximum DC resistance of 1 Ohm. The component is rated for a current handling capacity of 150 mA. It utilizes a shielded design to minimize electromagnetic interference. The physical package size is 0402, corresponding to the 1005 metric dimension standard.
Fixed Inductors Feature Summary
- Utilizes photolithographic single-layer thin film technology for high-frequency performance
- Shielded construction designed to reduce electromagnetic interference
- Engineered for excellent Q factor and superior temperature stability
Fixed Inductors Applications
- High-frequency RF circuits
- RF signal processing applications
- High SRF (Self-Resonant Frequency) requirements
Fixed Inductors Procurement Notes
Verify the specific manufacturer datasheet for the AL02BT3N3 to confirm current availability status and lead times. Ensure that the ordering suffix matches the required packaging format. Cross-reference the electrical parameters with system requirements before finalizing procurement decisions to avoid compatibility issues.
Fixed Inductors Selection Notes
Select this component when a low inductance value near 3.3 nH is required for high-frequency applications. Consider the 150 mA current rating and 1 Ohm DC resistance limits during circuit design. The 0402 package size is suitable for space-constrained PCB layouts requiring shielded thin film inductors.
Fixed Inductors Part Context
This component belongs to the AL Series of thin film ceramic chip inductors produced by Viking Tech Corporation. The series is characterized by high-frequency capabilities and precision manufacturing techniques. Viking Tech specializes in integrated passive devices, including thin-film and thick-film resistors and inductors.
Fixed Inductors Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult official Viking Tech resources or authorized distributors for equivalent components if this specific model is unavailable.
