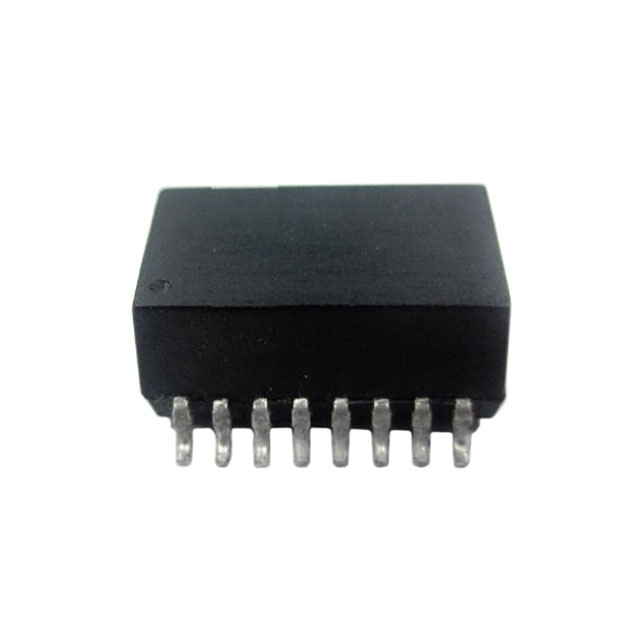

ALAN-101
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：LAN XFRMR 10/100 1PORT EXT-TEMP
- Series：-
- Mfr：Abracon LLC
- Package：Tube
- Transformer Type：LAN 10/100 Base-T
- Inductance：350µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1CT:1CT
- Mounting Type：Surface Mount
- Size / Dimension：0.450" L x 0.265" W (11.43mm x 6.73mm)
- Height - Seated (Max)：0.217" (5.51mm)
- Operating Temperature：-40°C ~ 85°C
- Grade：-
- Qualification：-
Download product information
Overview
The ALAN-101 is a single-port LAN transformer module designed for 10/100 Base-T applications. It features an extended temperature operating range from -40°C to +85°C. The component has dimensions of 11.43 mm in length, 6.73 mm in width, and 5.51 mm in height. It operates within a frequency range of 100 kHz to 100 MHz and provides an insulation voltage of 1.5 kVrms. The unit utilizes surface mount technology and contains a single channel with an inductance of 350 µH.
Feature Summary
- Extended temperature operation suitable for harsh environments
- Integrated isolation for signal integrity
- Compact surface-mount footprint
Applications
- 10/100 Base-T Ethernet network interfaces
- Industrial communication equipment
- Automotive networking systems
Procurement Notes
Verify availability status as the component may be discontinued or subject to limited distribution. Confirm RoHS compliance requirements against specific project standards. Ensure the ordering suffix matches the required packaging format if applicable. Cross-reference the manufacturer part number with official Abracon documentation to confirm current production status before finalizing procurement plans.
Selection Notes
Select this component when extended temperature performance is required for single-port Ethernet connections. Verify that the physical dimensions fit the designated PCB layout constraints. Ensure the insulation voltage rating meets the safety isolation requirements of the target application. Confirm compatibility with 10/100 Base-T signaling standards.
Part Context
This component belongs to the Abracon LAN transformer series, specifically engineered for Ethernet connectivity. It serves as a critical interface between the MAC layer and the physical medium. The design supports standard twisted-pair cabling configurations. It is distinct from multi-port variants by supporting only a single connection path.
Replacement Considerations
Consult official Abracon documentation for verified substitute part numbers. Ensure any replacement maintains identical electrical parameters and mechanical dimensions. Verify that alternative components support the same extended temperature range.
