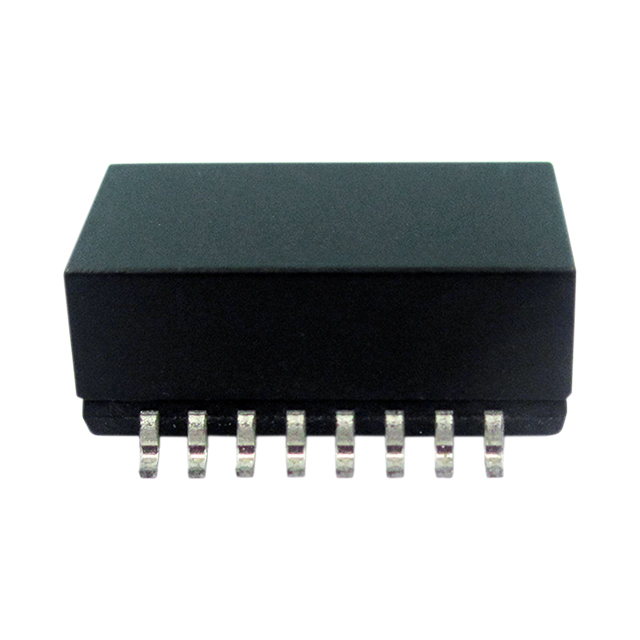

ALAN-134

Description：PULSE XFMR 1CT:1CT 350UH
Series：ALAN-134
Mfr：Abracon LLC
Package：Strip

SKU:8f78008158a4 Category: Pulse Transformers Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1CT:1CT 350UH
Series：ALAN-134
Mfr：Abracon LLC
Package：Strip
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.500" L x 0.272" W (12.70mm x 6.90mm)
Height - Seated (Max)：0.213" (5.40mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

ALAN-134

Overview

The ALAN-134 is a datacom transformer designed for LAN applications, specifically supporting 10/100 BASE-T Ethernet standards. It features a 1CT:1CT turns ratio and operates within a temperature range of -40 °C to 85 °C. The component has an insulation voltage rating of 1500 V and a primary inductance of 350 µH. Physically, it measures 28.45 mm in length, 12.19 mm in width, and 5.72 mm in height. It utilizes through-hole mounting technology.

Feature Summary

Supports 10/100 BASE-T Ethernet LAN applications
Through-hole mounted construction
High insulation voltage capability

Applications

LAN coupling
10/100 Base-T Ethernet interfaces
Ethernet application circuits

Procurement Notes

Verify the specific ordering suffix and package variant when sourcing, as availability may vary by distributor region. Confirm that the component meets current RoHS compliance requirements before integration. Check for any obsolete status indicators, as some related variants like the ALAN-134-T are marked obsolete. Ensure the supplier provides valid datasheets matching the exact part number to avoid pinout or specification mismatches during procurement.

Selection Notes

Select this component for designs requiring through-hole mounting for 10/100 BASE-T Ethernet PHY connections. Consider the physical dimensions of 28.45 x 12.19 x 5.72 mm for PCB layout constraints. Verify compatibility with leading PHY IC manufacturers if applicable. The 350 µH primary inductance and 1500 V isolation voltage are key parameters for signal integrity and safety compliance in standard Ethernet ports.

Part Context

This part belongs to the Abracon LAN coupling transformers series, which includes models like ALAN-411 and ALAN-102-T. These components are generally designed for fast Ethernet and Gigabit series applications. The ALAN-134 specifically targets 10/100 BASE-T standards, distinguishing it from higher-speed variants in the same family.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official manufacturer resources for direct equivalents or cross-reference lists.
