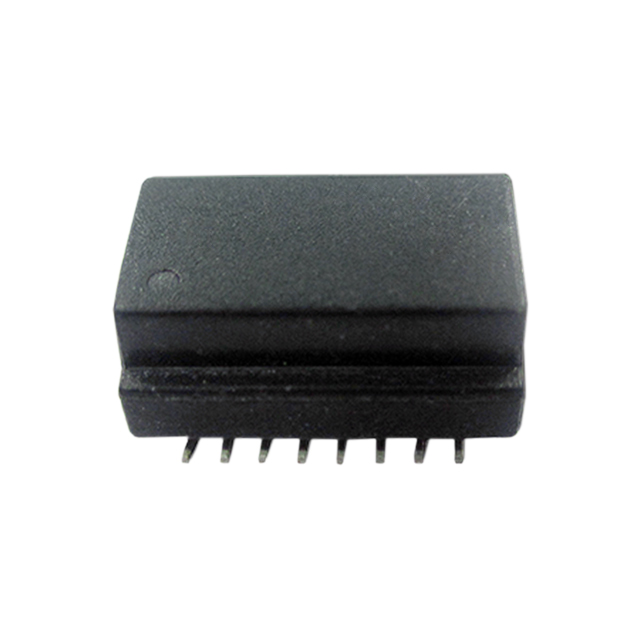

ALAN-2201

$4.56

Description：PULSE XFMR 1CT:1CT 350UH
Series：ALAN-2201
Mfr：Abracon LLC
Package：Tube

SKU:159117a0b70a Category: Pulse Transformers Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：PULSE XFMR 1CT:1CT 350UH
Series：ALAN-2201
Mfr：Abracon LLC
Package：Tube
Transformer Type：LAN 10/100 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.500" L x 0.346" W (12.70mm x 8.80mm)
Height - Seated (Max)：0.234" (5.95mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

ALAN-2201

Overview

The ALAN-2201 is a LAN 10/100 Base-T pulse transformer manufactured by Abracon LLC. It features a 350µH inductance and a 1CT:1CT turns ratio, designed for surface mount installation. The component operates within a temperature range of -40°C to 85°C and supports data rates up to 100 MHz. It provides 1.5 kVrms isolation voltage and complies with RoHS3 standards. The package dimensions are 12.70mm x 8.80mm x 5.95mm.

Feature Summary

Supports 10/100 Base-TX data transmission protocols
Provides high isolation voltage for signal integrity
Designed for surface mount technology integration

Applications

Ethernet network interface circuits
Telecommunications equipment
Industrial control systems

Procurement Notes

Verify the specific ordering suffix against the manufacturer's datasheet to ensure correct packaging configuration. Confirm that the component meets the required environmental specifications for the target application environment. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current availability status before finalizing procurement orders.

Selection Notes

Select this component for applications requiring standardized 10/100 Mbps Ethernet connectivity. Ensure the design accommodates the specified surface mount footprint and height constraints. Verify that the operating temperature range aligns with the system's thermal profile. Consider the isolation requirements when designing the circuit layout to maintain signal integrity and safety compliance.

Part Context

This component belongs to the ALAN series of LAN transformers from Abracon LLC. It is specifically engineered for single-port Ethernet applications. The series includes various variants tailored for different packaging and performance needs. This model represents a standard solution for integrating physical layer connectivity into electronic devices.

Replacement Considerations

ALAN-102 and ALAN-102-T are listed as parameter-equivalent alternatives. These substitutes share similar electrical characteristics but may differ in packaging or minor specifications. Verify compatibility with existing board layouts and performance requirements before substitution.
