ALAN-2301-T

Overview

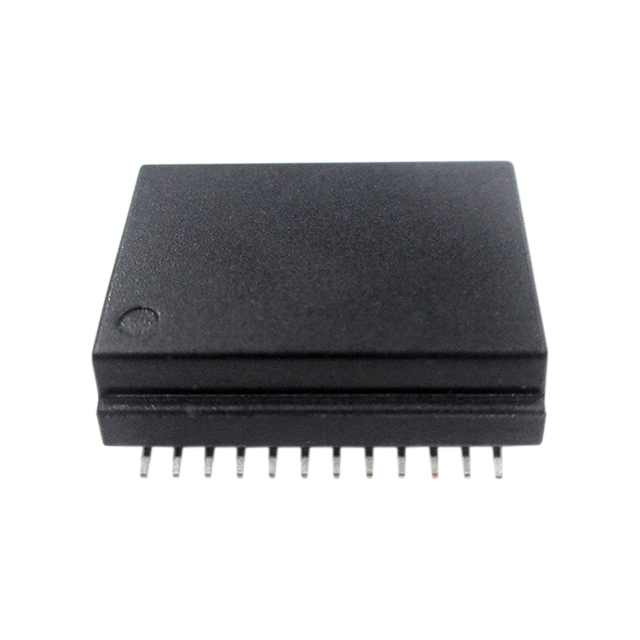

The ALAN-2301-T is a single-port LAN transformer module designed for 10/100/1000 Base-T Ethernet applications. It features a T,C schematic configuration and supports Power over Ethernet (PoE). The component has an inductance of 350 µH and operates within a temperature range of -40°C to 85°C. Its physical dimensions are 9.7 mm in length, with a maximum seated height of 5.55 mm. The device is RoHS compliant and utilizes surface mount packaging.

Feature Summary

• Supports 10/100/1000 Base-T data rates
• Integrated Power over Ethernet capability
• Single port design with T,C schematic

Applications

• Ethernet LAN infrastructure
• Network interface cards
• Industrial communication systems

Procurement Notes

Verify the obsolete lifecycle status before procurement planning. Confirm availability through authorized distributors as stock may be limited. Ensure the specific suffix matches project requirements for tape and reel packaging compatibility.

Selection Notes

Select this component for designs requiring integrated PoE support in Gigabit Ethernet ports. Verify PHY IC compatibility with leading manufacturers such as Broadcom or Marvell. Consider the operating temperature range for environmental suitability.

Part Context

This part belongs to Abracon's ALAN series of pulse transformers. It is specifically engineered for single-port LAN applications. The series includes variants supporting different data rates and PoE standards.

Replacement Considerations

Check for direct substitutes within the ALAN series. Verify pinout and electrical parameter equivalence for any cross-referenced components.
