ALAN-516-T

Overview

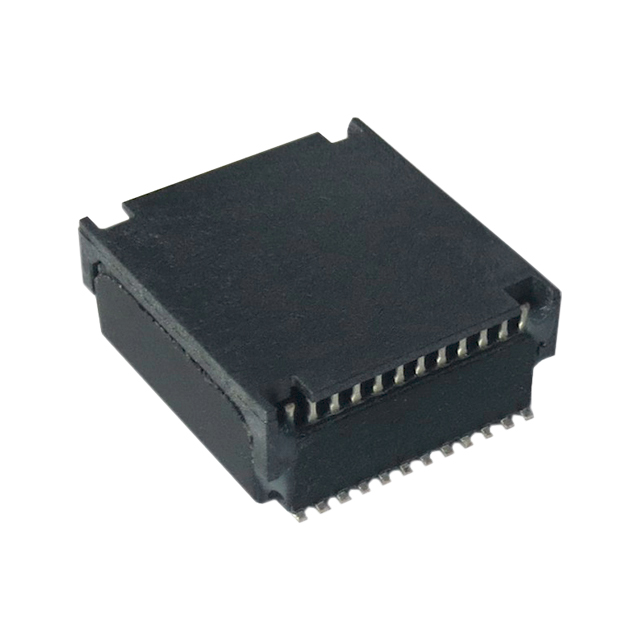

The ALAN-516-T is a 10G Base-T LAN pulse transformer manufactured by Abracon LLC. It features a single port configuration with a 24-pin surface mount package. The component includes an integrated common mode choke and supports data rates up to 10 Gbps. Key electrical specifications include an inductance of 100 µH and a turns ratio of 1CT:1CT. The device operates within a temperature range of -40°C to 85°C and measures 15.37 x 13.84 x 6.35 mm.

Feature Summary

• Supports 10G Base-T Ethernet data transmission standards
• Integrates common mode choke functionality for signal integrity
• Designed for high-density surface mount applications

Applications

• 10 Gigabit Ethernet network interface cards
• Server and switch motherboard connectivity
• High-speed data communication equipment

Procurement Notes

Verify the component matches the specific Abracon part number ALAN-516-T, noting the suffix indicates tape and reel packaging. Confirm RoHS compliance status and check for any specific handling requirements related to the surface mount package dimensions and pin count during assembly processes.

Selection Notes

Select this component for designs requiring 10G Base-T connectivity with integrated magnetics. Ensure the PCB footprint accommodates the 24-pin layout and the maximum seated height of 6.35 mm. Verify thermal management capabilities align with the specified operating temperature range of -40°C to 85°C for the target environment.

Part Context

This part belongs to the ALAN series of LAN transformers from Abracon. It is specifically engineered for 10G Base-T applications, distinguishing it from lower-speed variants like 1G or 2.5G models. The series provides standardized solutions for Ethernet physical layer connectivity in modern networking hardware.

Replacement Considerations

Consult official Abracon documentation for direct cross-references. No substitute part numbers are confirmed in available public data.
