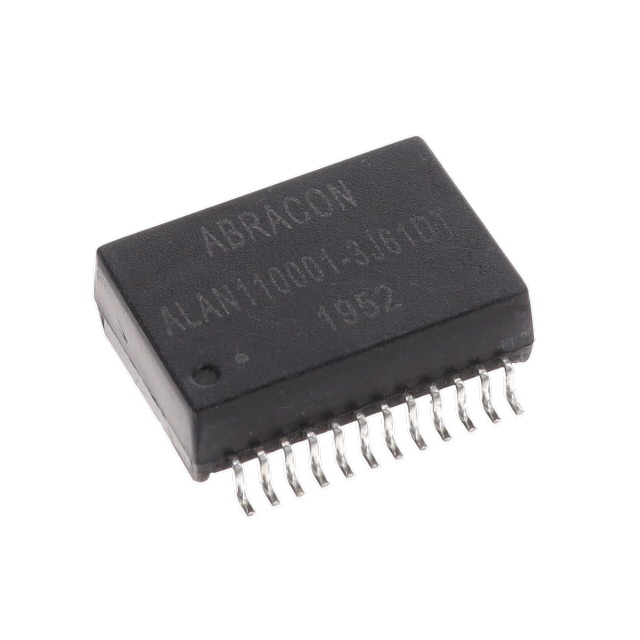

ALAN110001-3J61DT

$4.22

Description：XFRMR LAN 1CT:1CT 350UH
Series：ALAN110001-3
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f0b8716361b9 Category: Pulse Transformers Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFRMR LAN 1CT:1CT 350UH
Series：ALAN110001-3
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 10/100/1000 Base-T, Power over Ethernet (PoE)
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.724" L x 0.490" W (18.38mm x 12.44mm)
Height - Seated (Max)：0.254" (6.45mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

ALAN110001-3J61DT

Overview

The ALAN110001-3J61DT is a shielded LAN transformer designed for 10/100/1000 Base-T applications with Power over Ethernet (PoE) support. It features a single port configuration with a 1CT:1CT winding ratio and an inductance of 350 µH. The component provides 1.5 kV isolation and operates within a temperature range of -40°C to +85°C. It utilizes an SMD package measuring 18.4 x 12.4 mm.

Feature Summary

Supports 10/100/1000 Base-T data rates with integrated PoE functionality
Provides high voltage isolation for network safety
Shielded construction minimizes electromagnetic interference

Applications

Ethernet network interface cards
Industrial networking equipment
Consumer electronic devices requiring Gigabit connectivity

Procurement Notes

Verify the specific suffix against official Abracon documentation to confirm exact electrical characteristics and compliance status. Ensure the procurement channel sources genuine components to guarantee performance reliability. Cross-reference the datasheet for precise mechanical dimensions and thermal specifications before integration into final designs.

Selection Notes

Select this component for designs requiring compact, shielded LAN transformers with PoE capabilities. Confirm that the 350 µH inductance and 1.5 kV isolation meet system requirements. Evaluate the SMD footprint compatibility with PCB layout constraints and verify operating temperature limits for the intended environment.

Part Context

This part belongs to the ALAN series of audio and signal transformers manufactured by Abracon LLC. The series focuses on providing reliable connectivity solutions for various networking standards. Components in this line are engineered for surface mount assembly to facilitate automated manufacturing processes.

Replacement Considerations

Consult official Abracon documentation for confirmed substitute part numbers. Do not assume cross-compatibility with other manufacturers' LAN transformers without verifying electrical parameters and pin configurations.
