ALAN1100X1-2F00DT

$2.92

Description：XFRMR LAN 1CT:1CT 350UH
Series：ALAN1100X1
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:056020495ed5 Category: Pulse Transformers Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFRMR LAN 1CT:1CT 350UH
Series：ALAN1100X1
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 10/100 Base-T, Power over Ethernet (PoE)
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.504" L x 0.272" W (12.80mm x 6.90mm)
Height - Seated (Max)：0.222" (5.65mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

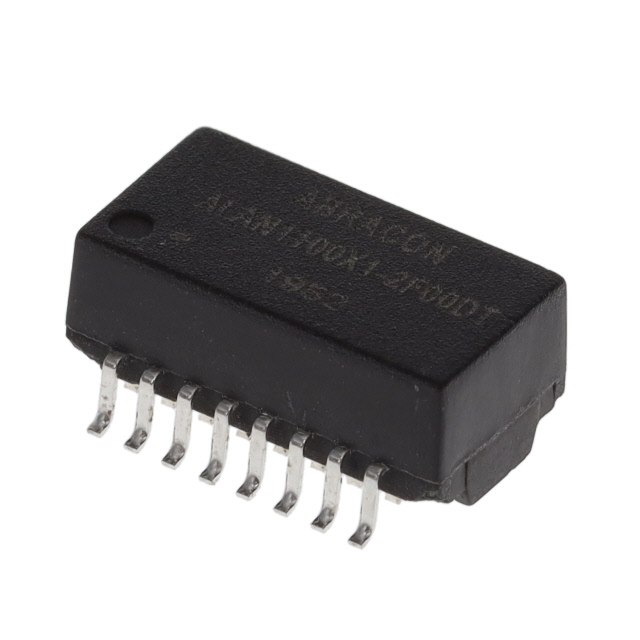

ALAN1100X1-2F00DT

Overview

The ALAN1100X1-2F00DT is a LAN transformer module designed for 10/100 Base-TX applications. It features SMD/SMT termination and operates within a frequency range of 100 kHz to 100 MHz. The component has an inductance of 350 uH and supports Power over Ethernet up to 15 Watts, with a current capability of 350 mA. It meets IEEE 802.3af standards. The physical dimensions are 12.8 mm in length, 6.9 mm in width, and 5.45 mm in height. It functions as a single-channel device with an operating temperature range from -40°C to +85°C.

Feature Summary

Supports 10/100 Base-TX network speeds
Provides Power over Ethernet functionality up to 15 Watts
Meets IEEE 802.3af standards

Applications

10/100 Base-TX network interfaces
Power over Ethernet powered devices
LAN port isolation circuits

Procurement Notes

Verify the specific manufacturer part number against official Abracon documentation to ensure compatibility. Confirm that the component meets all required environmental and electrical specifications for the intended application. Check for any end-of-life status or alternative sourcing options if availability is a concern.

Selection Notes

Select this component for designs requiring integrated LAN isolation and PoE support in a compact surface-mount package. Ensure the design accommodates the specified operating temperature range and current ratings. Verify footprint compatibility with the provided mechanical dimensions before finalizing the PCB layout.

Part Context

This component belongs to the ALAN1100X1 series of LAN transformers manufactured by Abracon LLC. These modules are engineered for high reliability in networking equipment. The series offers integrated magnetics solutions to simplify board space and reduce assembly complexity for standard Ethernet applications.

Replacement Considerations

Consult official Abracon documentation for verified substitute part numbers. Ensure any replacement matches the electrical characteristics, pinout, and mechanical dimensions of the original component.
