ALAN1100X1-2F30DT

$3.67

Description：XFRMR LAN 10/100 1CT:1CT 350UH
Series：ALAN1100X1
Mfr：Abracon LLC
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)

SKU:b6f07edebe18 Category: Pulse Transformers Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFRMR LAN 10/100 1CT:1CT 350UH
Series：ALAN1100X1
Mfr：Abracon LLC
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 10/100 Base-T, Power over Ethernet (PoE)
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT Transmitter, 1CT:1CT Receiver
Mounting Type：Surface Mount
Size / Dimension：0.504" L x 0.272" W (12.80mm x 6.90mm)
Height - Seated (Max)：0.222" (5.65mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

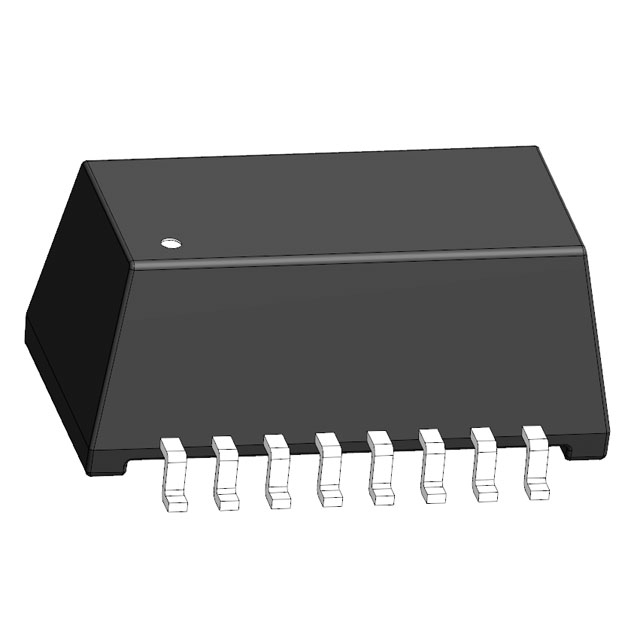

ALAN1100X1-2F30DT

Overview

The ALAN1100X1-2F30DT is a LAN transformer from Abracon LLC designed for 10/100 Base-TX applications. It supports Power over Ethernet (PoE) up to 15 Watts, meeting IEEE 802.3af standards. The component features a dual-channel configuration with a turns ratio of 1CT:1CT for both transmitter and receiver sides. Key electrical parameters include an inductance of 350 µH and an isolation voltage of 1.5 kV. It operates within a temperature range of -40°C to +85°C and utilizes surface mount technology.

Feature Summary

Supports 10/100 Base-TX Ethernet speeds
Integrates Power over Ethernet functionality
Complies with IEEE 802.3af standards

Applications

Ethernet network interface circuits
Power over Ethernet powered devices
LAN connectivity modules

Procurement Notes

Verify the manufacturer part number ALAN1100X1-2F30DT against official Abracon documentation to ensure authenticity. Confirm that the specific package type and reel specifications match your assembly requirements. Cross-reference datasheet parameters such as inductance and isolation voltage with your design constraints before finalizing procurement.

Selection Notes

Select this component for designs requiring integrated PoE support in 10/100 Mbps networks. Ensure the surface mount footprint dimensions align with the PCB layout. Verify thermal performance capabilities within the specified operating temperature range of -40°C to +85°C for the intended application environment.

Part Context

This component belongs to the ALAN1100X1 series of LAN transformers manufactured by Abracon LLC. These components are engineered for high reliability in Ethernet applications. The series provides integrated magnetics solutions suitable for compact electronic designs requiring standardized network connectivity.

Replacement Considerations

Consult official Abracon documentation for verified substitute part numbers. Do not assume cross-compatibility with other LAN transformers without verifying pinout, electrical parameters, and mechanical dimensions.
