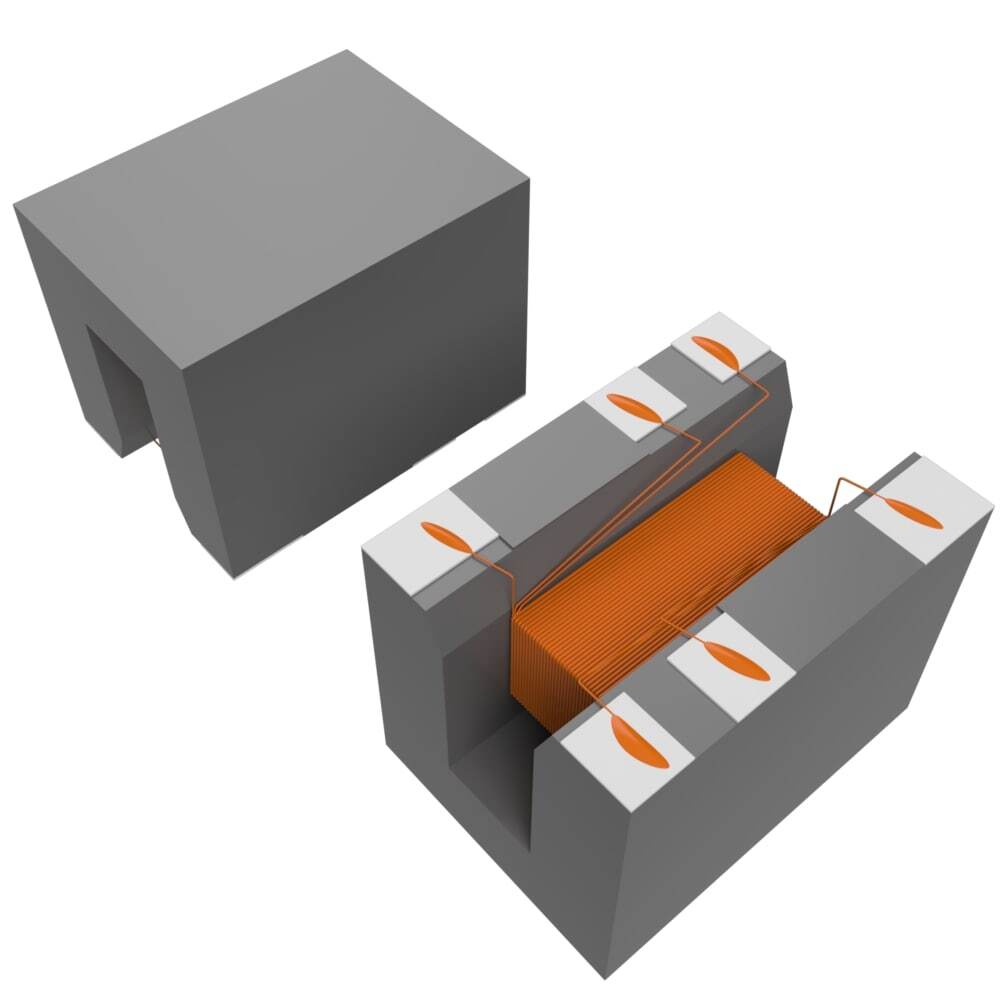

ALANC001G1-EADT

$0.32

Description：XFMR LAN 200UH BASE-T POE
Series：ALANC001G
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:b21e2f4b5e68 Category: Pulse Transformers Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFMR LAN 200UH BASE-T POE
Series：ALANC001G
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 10/100/1000 Base-T
Inductance：200µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.181" L x 0.134" W (4.60mm x 3.40mm)
Height - Seated (Max)：0.138" (3.50mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

ALANC001G1-EADT

Overview

The ALANC001G1-EADT is a surface mount pulse transformer designed for LAN applications supporting 10/100/1000 Base-T standards with Power over Ethernet (PoE) capability. It features a 1:1 turns ratio and an inductance of 200 µH. The component provides 1.5 kV isolation voltage and has a maximum DC resistance of 1.5 Ohms. It operates within a temperature range up to +85°C and utilizes a shielded SMD/SMT termination style.

Feature Summary

Supports 10/100/1000 Base-T Ethernet standards
Integrated Power over Ethernet (PoE) functionality
Shielded construction for signal integrity

Applications

Ethernet network interface cards
LAN port implementations
PoE-enabled networking equipment

Procurement Notes

Verify the specific manufacturer part number against official Abracon documentation to ensure compatibility with your design requirements. Confirm that the surface mount package dimensions and thermal characteristics align with your PCB layout constraints. Ensure that the sourcing channel provides genuine components to maintain reliability in high-speed data transmission applications.

Selection Notes

Select this component when designing systems requiring integrated PoE support alongside Gigabit Ethernet connectivity. The 1.5 kV isolation rating ensures safety compliance for network interfaces. Consider the physical footprint and shielding requirements if electromagnetic interference mitigation is critical for the target application environment.

Part Context

This component belongs to the Abracon LAN transformer family, specifically engineered for high-speed data communication. It serves as a critical interface element between the MAC layer and the physical medium, ensuring proper signal coupling and isolation for reliable network performance in modern computing devices.
