ALANC002G1-EADT

Overview

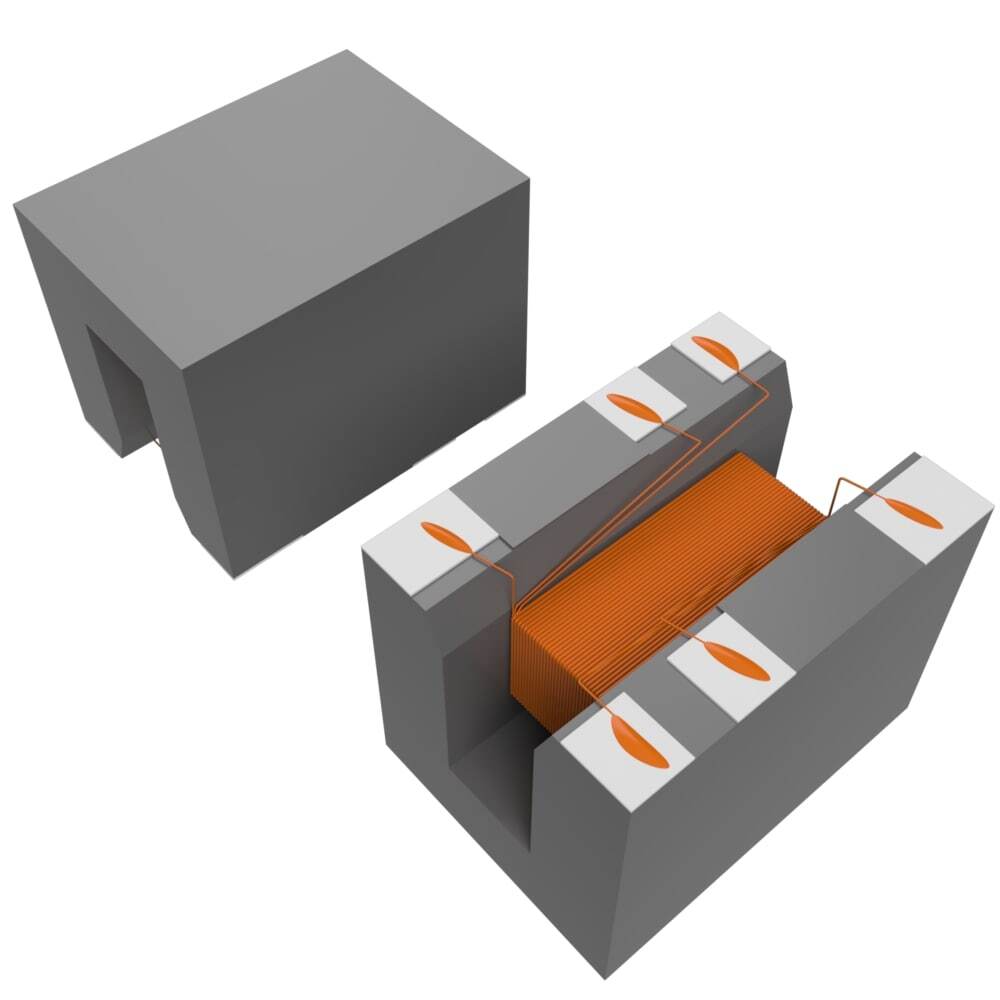

The ALANC002G1-EADT is a surface mount LAN isolation transformer from Abracon LLC, designed for 2.5G Base-T applications. It features a single port configuration with an 8-pin count and a T-type schematic topology. The component provides 1CT:1CT coupling and supports Power over Ethernet (PoE) functionality. Key electrical specifications include an inductance of 150 µH. It operates within a temperature range of -40°C to 85°C and complies with IEEE 802.3ab standards.

Feature Summary

• Provides galvanic isolation for 2.5G Base-T Ethernet signals
• Supports Power over Ethernet (PoE) transmission
• RoHS compliant and lead-free construction
• Surface mount package design

Applications

• 2.5 Gigabit Ethernet network interfaces
• PoE powered devices requiring isolation
• Industrial networking equipment operating in extended temperatures
• Consumer electronics with high-speed LAN connectivity

Procurement Notes

Verify the specific datasheet version for the ALANC002G1-EADT to confirm moisture sensitivity level and reflow soldering profiles. Ensure compatibility with IEEE 802.3ab standards for your design. Check for any recent updates regarding RoHS II compliance status. Confirm the 8-pin footprint dimensions against your PCB layout requirements before finalizing procurement.

Selection Notes

Select this component when designing for 2.5G Base-T speeds with PoE requirements. The 150 µH inductance value suits standard Ethernet line filtering needs. Consider the -40°C to 85°C operating range for industrial or automotive environments. The surface mount form factor aids in automated assembly processes for compact network modules.

Part Context

This part belongs to the ALANC002G series of LAN transformers from Abracon. These components are engineered for high-density networking applications. The series typically offers integrated magnetics solutions to reduce board space. Compliance with major international safety and environmental standards is standard across the product line.

Replacement Considerations

Consult official Abracon documentation for direct pin-to-pin replacements. Verify that substitute parts support 2.5G Base-T speeds and PoE capabilities. Ensure equivalent inductance values and isolation ratings are maintained. Cross-reference mechanical dimensions to fit existing footprints.
