ALANC10001-CDB3DT

Overview

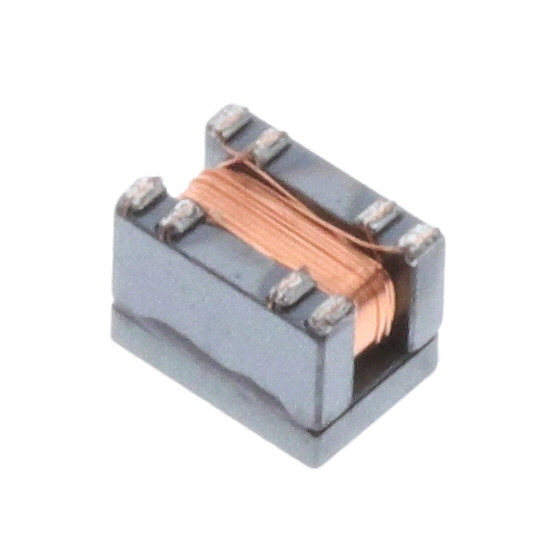

The ALANC10001-CDB3DT is a single LAN transformer designed for 10/100/1000 BASE-T applications. It features an unshielded construction with SMD/SMT termination. Key electrical parameters include an inductance of 200 uH and a maximum DC resistance of 5 Ohms. The component operates within a temperature range of -40°C to +85°C. Physical dimensions are 4.5 mm in length, 3.5 mm in height, and it utilizes an 8-pin configuration.

Feature Summary

• Supports 10/100/1000 BASE-T Ethernet standards
• Single channel transformer design
• Surface mount termination type

Applications

• Ethernet network interface cards
• Computer motherboards
• Network switches

Procurement Notes

Verify the specific suffix (CDB3DT) against official Abracon documentation to confirm pinout and mechanical footprint compatibility. Ensure the selected variant matches the required inductance and resistance specifications for the target circuit design. Cross-reference datasheet revisions to confirm current manufacturing status and environmental compliance details before finalizing procurement orders.

Selection Notes

Select this component for designs requiring a single-channel solution for Gigabit Ethernet connectivity. Consider the unshielded nature of the device when evaluating electromagnetic interference requirements relative to surrounding components. Verify that the 8-pin surface mount package aligns with the available PCB real estate and assembly capabilities of the manufacturing facility.

Part Context

This part belongs to the ALANC10001 series of LAN transformers manufactured by Abracon LLC. The series provides signal transformation solutions for various Ethernet speeds. This specific model represents a single-channel variant optimized for compact electronic devices requiring reliable data transmission over twisted-pair cabling.

Replacement Considerations

Publicly confirmed substitute part numbers for this specific component were not identified in the provided source material.
