ALANC10001-EEB3DT

$0.39

Description：LAN XFMR 10/100/1000BASE-T
Series：ALANC10001
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:e8f8d0cc87b7 Category: Pulse Transformers Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LAN XFMR 10/100/1000BASE-T
Series：ALANC10001
Mfr：Abracon LLC
Package：Tape & Reel (TR)
Transformer Type：LAN 10/100/1000 Base-T
Inductance：150µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：0.181" L x 0.134" W (4.60mm x 3.40mm)
Height - Seated (Max)：0.138" (3.50mm)
Operating Temperature：-40°C ~ 85°C
Grade：-
Qualification：-

Download product information

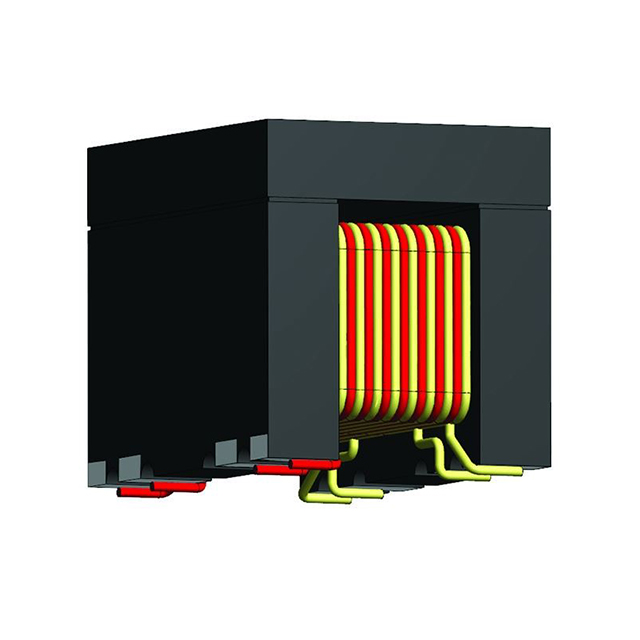

ALANC10001-EEB3DT

Overview

The ALANC10001-EEB3DT is a LAN pulse transformer designed for 10/100/1000 Base-T applications. It features a surface mount package with an inductance of 150µH and a turns ratio of 1CT:1CT. The component supports operation within a temperature range of -40°C to +85°C. Dimensions are approximately 4.5 mm in length, 3.5 mm in height, and maximum DC resistance is specified at 5 Ohms.

Feature Summary

Supports Gigabit Ethernet data transmission standards
Surface mount construction for automated assembly
Integrated common mode choke functionality

Applications

Gigabit Ethernet network interfaces
Computer networking hardware
Telecommunications equipment

Procurement Notes

Verify the specific suffix EEB3DT against official Abracon documentation to confirm packaging type and tape/reel specifications. Ensure compatibility with PCB footprint requirements and reflow soldering profiles defined in the datasheet. Confirm RoHS compliance status for the specific manufacturing batch.

Selection Notes

Select this component for designs requiring integrated LAN isolation and filtering. Compare inductance values and physical dimensions against existing board space constraints. Verify that the 1CT:1CT turns ratio aligns with the PHY chip interface requirements. Check operating temperature limits against environmental conditions.

Part Context

This part belongs to the ALANC series of LAN transformers from Abracon LLC. These components are engineered for high reliability in demanding environments. The series typically integrates pulse transformation and common mode chokes into a single surface-mount package to save board space.

Replacement Considerations

Consult official Abracon substitution guides for verified alternatives. Generic cross-references may not match electrical parameters or pin configurations. Verify mechanical fit and electrical performance before replacing.
