ALANL10001-FJ62ET

Overview

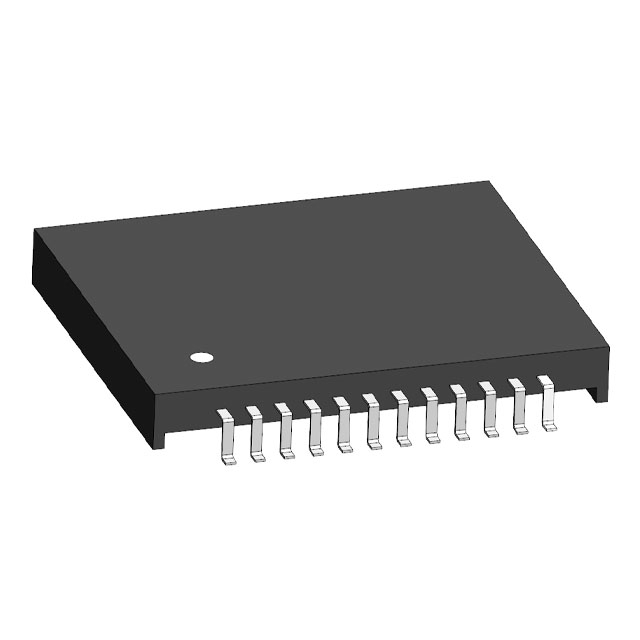

The ALANL10001-FJ62ET is a LAN transformer module designed for 10/100/1000BASE-T applications. It features a surface-mount package with dimensions of 19.8 mm length, 16.6 mm width, and 2.5 mm height. The component operates within a temperature range of -40°C to +125°C and has an inductance of 350 uH. Primary coil resistance is 1 Ohm, while secondary coil resistance is 1.5 Ohms. It is shielded and RoHS compliant.

Feature Summary

• Supports 10 BASE-T, 100 BASE-TX, and 1000 Base-T standards
• Low profile design suitable for space-constrained layouts
• Compliant with IEEE 802.3ab standards

Applications

• Ethernet network interface circuits
• LAN port signal conditioning
• Industrial networking equipment

Procurement Notes

Verify the specific suffix against the manufacturer datasheet to confirm pinout and electrical characteristics. Ensure the selected variant matches the required primary and secondary DC resistance values for the target circuit design. Confirm moisture sensitivity level handling procedures during assembly.

Selection Notes

Select this component when a low-profile, shielded LAN transformer is required for Gigabit Ethernet applications. Consider the operating temperature range and physical dimensions relative to the PCB layout constraints. Verify compatibility with the intended PHY controller and PoE requirements if applicable.

Part Context

This part belongs to the ALANL10001 series from Abracon, which provides LAN transformers for various Ethernet speeds. The series includes variants with different mounting styles and electrical specifications to support diverse networking hardware designs.

Replacement Considerations

ALANL10001-FJ62DT is a documented substitute within the same series.
