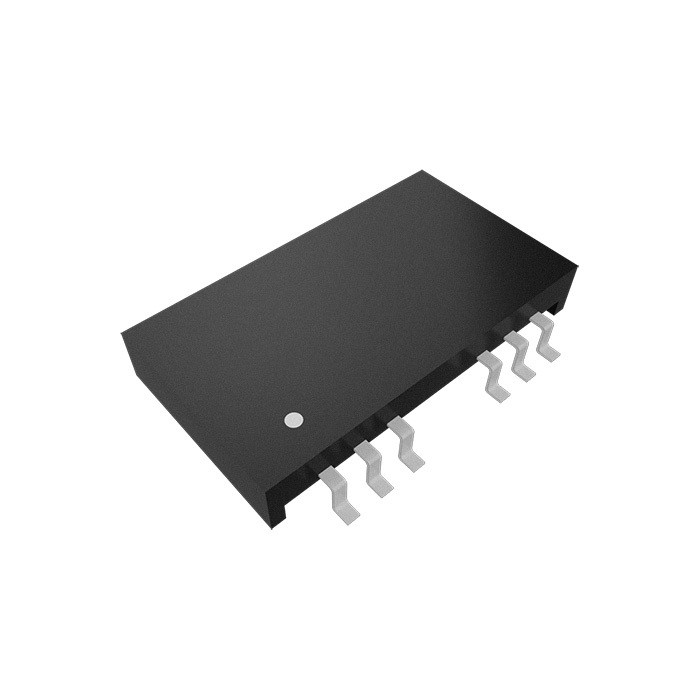

ALANL100X1-DE10KT

Overview

The ALANL100X1-DE10KT is a surface-mount LAN transformer module designed for 10/100BASE-TX applications. It features an inductance of 350µH and operates within a temperature range of -40°C to +85°C. The component measures 12.8mm in length, 6.9mm in width, and 5.45mm in height. It supports dual channels and complies with IEEE 802.3u standards.

Feature Summary

• Supports 10BASE-T and 100BASE-TX Ethernet standards
• Low profile design suitable for space-constrained PCB layouts
• Integrated common mode choke functionality

Applications

• Ethernet network interface cards
• Industrial communication modules
• Consumer networking hardware

Procurement Notes

Verify RoHS compliance status and lead times through authorized distributors. Confirm moisture sensitivity levels and reflow soldering profiles prior to assembly. Ensure storage conditions meet manufacturer specifications to prevent damage.

Selection Notes

Select this component for single-port 10/100Mbps Ethernet connections requiring low-profile SMT packaging. Compare physical dimensions against board space constraints. Verify electrical compatibility with upstream PHY transceivers regarding impedance matching.

Part Context

This part belongs to the ALANL100X1 series of LAN transformers from Abracon. It serves as a signal conditioning component for twisted-pair copper cabling. The series provides integrated magnetics for basic Ethernet connectivity.

Replacement Considerations

ALANL100X1-DED2E is a confirmed substitute within the same product family.
