ALANS10001-3J11DT

Overview

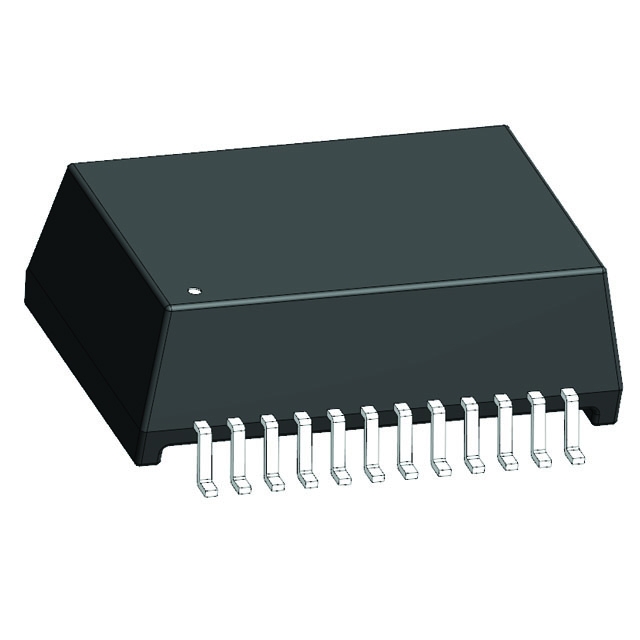

The ALANS10001-3J11DT is a LAN transformer module designed for single-port applications supporting 10 BASE-T, 100 BASE-TX, and 1000 BASE-T standards. It features an inductance of 350 uH and operates within a temperature range of -40°C to +85°C. The component utilizes surface mount technology and includes two channels. Physical dimensions are specified with a length of 14.81 mm and a width of 11.68 mm.

Feature Summary

• Supports 10/100/1000 Base-T Ethernet standards
• Integrated common mode choke functionality
• Surface mount package design

Applications

• Single-port LAN interface circuits
• Ethernet switch modules
• Network adapter cards

Procurement Notes

Verify the specific suffix '3J11DT' against the manufacturer's current datasheet to confirm availability and exact electrical tolerances. Check RoHS compliance status as indicated in official documentation. Ensure the ordering part number matches the required pin configuration and packaging format before finalizing procurement orders.

Selection Notes

Select this component for designs requiring integrated signal conditioning for Gigabit Ethernet ports. Confirm that the operating temperature range meets the environmental requirements of the target application. Verify compatibility with the specific PHY controller being used in the network interface design.

Part Context

This part belongs to the ALANS10001 series of LAN transformers from Abracon. These components are engineered to provide isolation and impedance matching for Ethernet physical layer interfaces. The series supports various data rates including 10 Mbps, 100 Mbps, and 1 Gbps over twisted pair cabling.

Replacement Considerations

Consult the manufacturer's cross-reference list for direct substitutes. Generic replacements may differ in magnetic performance or footprint. Verify mechanical fit and electrical parameters before substitution.
