ALANS10001-3J41ET

$2.64

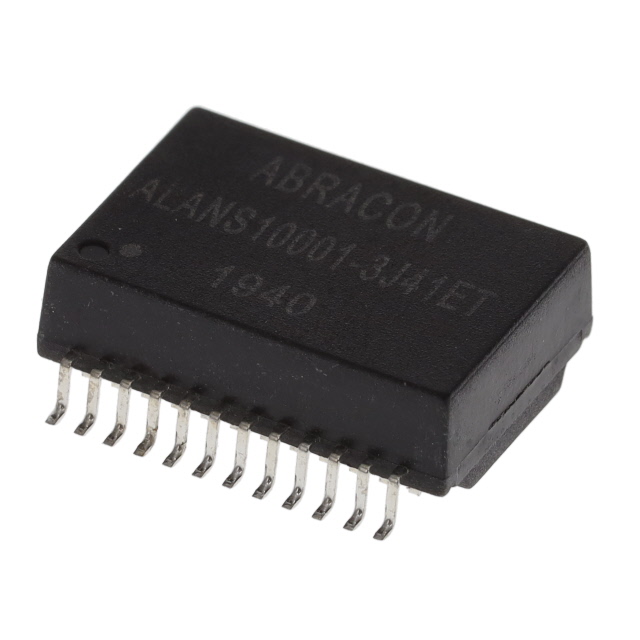

Description：LAN SGL 1000B XFMR&CMC&AUTO 24PI
Series：ALANS10001-3
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:990f70bd5fda Category: Pulse Transformers Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LAN SGL 1000B XFMR&CMC&AUTO 24PI
Series：ALANS10001-3
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Transformer Type：LAN 10/100/1000 Base-T
Inductance：350µH
ET (Volt-Time)：-
Turns Ratio - Primary:Secondary：1CT:1CT
Mounting Type：Surface Mount
Size / Dimension：-
Height - Seated (Max)：0.254" (6.45mm)
Operating Temperature：0°C ~ 70°C
Grade：-
Qualification：-

Download product information

ALANS10001-3J41ET

Overview

The ALANS10001-3J41ET is a LAN pulse transformer from Abracon LLC, designed for 10/100/1000 Base-T Ethernet applications. It features a surface mount (SMD/SMT) package with dimensions of 18.4 mm in length, 6.5 mm in height, and an inductance of 350 uH. The component operates within a temperature range of -40°C to +70°C and supports dual channels. It is RoHS compliant and intended for use in fast and Gigabit Ethernet systems.

Feature Summary

Supports 10/100/1000 Base-T Ethernet standards
Dual channel configuration for signal transmission
Surface mount design for automated assembly

Applications

Fast Ethernet network interfaces
Gigabit Ethernet servers
Network communication equipment

Procurement Notes

Verify the specific operating temperature range (-40°C to +70°C) against your system requirements, as some sources indicate higher limits. Confirm the exact physical dimensions (18.4mm x 6.5mm) fit your PCB layout. Ensure compatibility with 10/100/1000 Base-T protocols before integration.

Selection Notes

Select this component for applications requiring robust LAN signal isolation in compact surface mount designs. Consider the 350 uH inductance value for impedance matching. Verify thermal performance within the specified -40°C to +70°C range for reliable operation in various environmental conditions.

Part Context

This part belongs to the ALANS10001 series of LAN transformers by Abracon LLC. It is specifically engineered for high-speed data transmission in Ethernet networks. The series offers standardized form factors suitable for modern electronic devices requiring reliable network connectivity.

Replacement Considerations

Check for direct substitutes within the ALANS10001 series or compatible LAN transformers from other manufacturers that match the 350 uH inductance and 18.4mm footprint. Ensure any replacement maintains the same voltage isolation and frequency response characteristics.
